- Schäffer - Model 2024 - Compact Loader

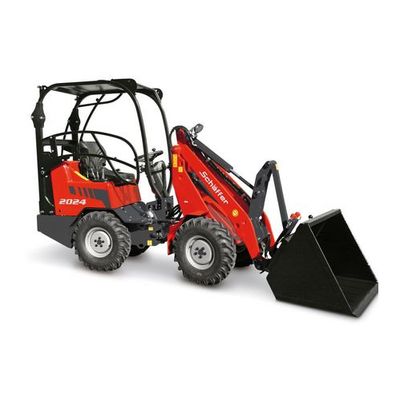

Schäffer - Model 2024 -Compact Loader
With the hydrualic four-wheel-drive foot pedal controls, the 2024 loader can be operated very easily. The diesel engine revs are adjusted through the accelerator. The direction of travel and speed are controlled with a pedal on the left side of the machine. This outstanding ease of operation makes the machine very manoeuvrable, and is a huge advantage in areas with a lot of changes of speed and direction.
Most popular related searches
sound pressure level
hand arm vibration
exhaust gas treatment
temperature indicator
hand arm
gas treatment
exhaust gas emissions
tipping bucket
gas emissions treatment
exhaust treatment
- 3-cylinder diesel engine Kubota D1105, 18.5 kW (25 HP)
- Hydraulic four wheel drive with foot pedal control
- Tyres 7.00-12 AS, offset +40 incl. reversable rims
- Genuine Schäffer axle, 5 hole
- Drum brake as service and parking brake
- Maintenance free articulated pendulum joint
- Restraining system for protection roof
- LED working headlights: 2 x front, 1 x rear
- Parallel lift
- Mechanically operated additional controller
- Working hydraulics: 33 l/min
- Adjustable steering column
- Hour meter, fuel control lamp and temperature indicator
- Quick-change frame SWH with hydraulic tool lock
- Engine
- Type: 3-cylinder diesel engine Kubota D1105
- Output: 18.5 kW (25 HP)
- Exhaust gas treatment / emission level: - / V
- Tyres
- Standard tyres: 7.00-12 AS, ET+40, AS
- Option I: 27x8.50-15, ET +30, SKD
- Option II: 27x10.5-15, ET 0, SKD
- Option III: 26x12.00-12
- Electric system
- Operating voltage: 12 V
- Dimensions
- (A) Wheelbase: 1,375 mm
- (B) Chassis length: 2,780 mm
- (C) Overall length with standard bucket: 3,530 mm
- (D) Digging depth: 110 mm
- (G) Loading height with pallet fork / option: 2,560 / 2,920 mm
- (H) Max. dumping height / option: 1,965 / 2,265 mm
- (I) Front end height / option: 1,600 / 1,725 mm
- (J) Dumping width: 440 mm
- (K) Seat height: 1,055 mm
- (L) Protective roof height: 2,100 mm
- (M) Max, bucket pivot point / option [mm]: 2,800 / 3,060 mm
- (N) Overall width / option: 905 (1,065 turned) / 940 - 1,250 mm
- (O) Inner turning radius: 900 mm
- (P) Outer turning radius: 1,795 mm
- (Q) Outer radius with standard bucket: 2,185 mm
- Drive
- Traction hydraulics: Hydraulic
- Axles: Original Schäffer axles, 5 wheel nut rim
- Speed: 0 - 12 kph
- Brakes and steering
- Service braking system: Mechanical drum brake
- Parking brake: Mechanical drum brake
- Steering: Fully hydraulic articulated-swivel steering
- Tank capacity
- Fuel: 23 l
- Hydraulic oil: 30 l
- Working hydraulics
- Delivery rate: 33 l/min
- Operat. pressure: 200 bar
- Weights
- Operating weight protective roof incl. Original tyres, driver and standard bucket: 1,700 kg
- Lifting capacity: 1,400 kg
- Tipping load, straight, pallet fork acc. to ISO 8313: 622 - 786 kg
- Tipping load, straight, bucket acc. to ISO 8313: 829 - 973 kg
- Tipping load, articulated, pallet fork acc. to ISO 8313: 320 kg
- Tipping load, articulated, bucket acc. to ISO 8313: 410 kg
- Payload, pallet fork, even ground acc. to EN 474-3: 256 kg
- Payload, pallet fork, uneven ground acc. to EN 474-3: 192 kg
- Payload bucket acc. to EN 14397-1: 205 kg
- Sounds and vibration
- Sound pressure level LpA: 84 db(A)
- Sound power level guaranteed LwA: 101 db(A)
- Sound power level equivalent LwA: 98 db(A)
- Hand/arm vibration acc. to ISO 8041: <2,5 m/s²
- Total body vibration acc. to ISO 8041: <0,5 m/s²
