Schäffer Maschinenfabrik GmbH

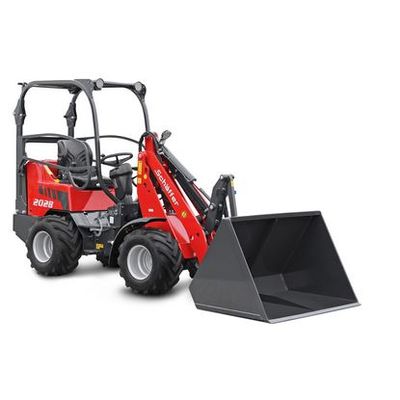

Schäffer - Model 2028-2 -Compact Loader
3-cylinder diesel engine Kubota D1105, 18.5 kW (25 HP). Hydrostatic four wheel drive with automotive control. Tyres 7.00-12 AS, offset +40 incl. reversable rims.
Most popular related searches
sound pressure level
hand arm vibration
exhaust gas treatment
temperature indicator
hand arm
gas treatment
exhaust gas emissions
tipping bucket
gas emissions treatment
exhaust treatment
- SPT (Schäffer Power Transmission)
- Genuine Schäffer axle, 5 hole
- Combined oil cooler
- Drum brake as service and parking brake
- Maintenance free articulated pendulum joint
- Restraining system for protection roof
- LED working headlights: 2 x front, 1 x rear
- Parallel lift
- Mechanically operated additional controller
- Working hydraulics standard / option: 33 / 42 l/min
- Adjustable steering column
- Hour meter, fuel control lamp and temperature indicator
- Rear weight end plate
- Driver-on-board switch
- Quick-change frame SWH with hydraulic tool lock
- Engine
- Type: 3-cylinder diesel engine Kubota D1105
- Output: 18.5 kW (25 HP)
- Exhaust gas treatment / emission level: - / V
- Tyres
- Standard tyres: 7.00-12 AS
- Option I: 27x8.50-15
- Option II: 27x10.5-15
- Option III: 26x12.00-12
- Electric system
- Operating voltage: 12 V
- Sounds and vibration
- Sound pressure level LpA: 83 db(A)
- Sound power level guaranteed LwA: 101 db(A)
- Sound power level equivalent LwA: 98 db(A)
- Hand/arm vibration acc. to ISO 8041: <2,5 m/s²
- Total body vibration acc. to ISO 8041: <0,5 m/s²
- Drive
- Traction hydraulics: Hydrostatic-automotiv
- Axles: Original Schäffer axles, 5 wheel nut rim
- Speed: 0 - 15 kph
- Brakes and steering
- Service braking system: Hydrostatic mechanical drum brake
- Parking brake: Mechanical drum brake
- Steering: Fully hydraulic articulated-swivel steering
- Tank capacity
- Fuel: 23 l
- Hydraulic oil: 30 l
- Dimensions
- (A) Wheelbase: 1,405 mm
- (B) Chassis length: 2,850 mm
- (C) Overall length with standard bucket: 3,560 mm
- (D) Digging depth: 110 mm
- (G) Loading height with pallet fork / option: 2,560 / 2,920 mm
- (H) Max. dumping height / option: 1,965 / 2,265 mm
- (I) Front end height: 1,600 / 1,725 mm
- (J) Dumping width: 440 mm
- (K) Seat height: 1,055 mm
- (L) Protective roof height: 2,100 mm
- (M) Max, bucket pivot point / option [mm]: 2,800 / 3,060 mm
- (N) Overall width / option: 905 (1,065 turned) / 940 - 1,250 mm
- (O) Inner turning radius: 820 mm
- (P) Outer turning radius: 1,715 mm
- (Q) Outer radius with standard bucket: 2,105 mm
- Working hydraulics
- Delivery rate / option: 33 l/min / 42 l/min
- Operat. pressure: 200 bar
- Weights
- Operating weight protective roof incl. Original tyres, driver and standard bucket: 1,760 kg
- Lifting capacity: 1,500 kg
- Tipping load, straight, pallet fork acc. to ISO 8313: 675 - 841 kg
- Tipping load, straight, bucket acc. to ISO 8313: 832 - 976 kg
- Tipping load, articulated, pallet fork acc. to ISO 8313: 375 kg
- Tipping load, articulated, bucket acc. to ISO 8313: 505 kg
- Payload, pallet fork, even ground acc. to EN 474-3: 300 kg
- Payload, pallet fork, uneven ground acc. to EN 474-3: 225 kg
- Payload bucket acc. to EN 14397-1: 252,5 kg
- Transport of materials
- Specific material weight: 1,6 t/m³
- Bucket volume acc. to ISO 8041: 0,2 m³
- Recommended bucket width: 0,9 m
