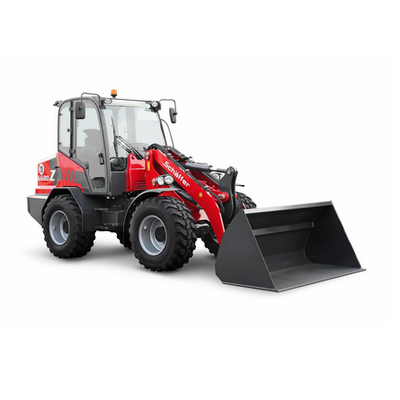

Schäffer - Model 6680 Z-3 -Wheel Loader
The optional potentiometer acts as cruise control. The loader keeps a constant speed automatically and independently from the motor speed - especially convenient when working with fodder dosing devices, straw distributors, mulchers or brooms. Additionally, there are several new safety functions, for example protection from overheating and motor over-rewing protection, making working with the loader safer and more reliable. SPT is standard on the 4670 Z-2. the 5680 Z and the 6680 Z-3.
Most popular related searches
wheel loader
sound pressure level
hand arm vibration
exhaust gas treatment
temperature indicator
hand arm
air cleaner
emissions standard
exhaust gas emissions
gas treatment
- 4-cylinder diesel engine Deutz TCD 2.9, 55 kW (75 HP)
- DOC and DPF for compliance with Stage V emissions standards
- Hydrostatic four wheel drive with automotive control
- High-pressure drive HD-plus
- Tyres 400/70-20 AS, offset -50
- HTF (High Traction Force)
- SPT (Schäffer Power Transmission)
- ECO Mode
- Hydraulic quick gear 20 km/h / 40 km/h switchable under load
- HD planetary axles with self-locking differentials, 8 hole
- Rear pendulum axle
- Combined oil cooler
- Hydraulic fan drive
- SCV-Plus-Cabin (Silence, Comfort, View)
- Multiple disk brake, maintenance free; service and parking brake
- Maintenance free articulation joint
- LED working headlights: 2 x front, 1 x rear
- Lighting system without ABE (General approval certificate) according to ordinance StVZO
- Z-bar boom with parallel lift
- Additional control device electrically switchable on joystick
- Working hydraulics standard / options: 76 / 88 (Flow Sharing) / 104 l/min (Load Sensing)
- Steering column adjustable in length and angle
- Hour meter, rev counter, fuel control lamp and temperature indicator
- Adjustable armrest
- Rear weight end plate and towing hitch
- Main battery switch
- 2-stage air cleaner with highly efficient pre-cleaner system
- Headstock type wheel loader with hydraulic tool lock
- Engine
- Type: 4-cylinder diesel engine Deutz TCD 2.9
- Output: 55 kW (75 PS)
- Exhaust gas treatment / emission level: DOC, DPF / V
- Tyres
- Standard tyres: 400/70-20 AS, ET0
- Option I: 12.5/80-18 AS, ET-50
- Option II: 550/45-22.5 AS (A331), ET-50
- Electric system
- Operating voltage: 12 V
- Sounds and vibration
- Sound pressure level LpA: 70 db(A)
- Sound power level guaranteed LwA: 101 db(A)
- Sound power level equivalent LwA: 101 db(A)
- Hand/arm vibration acc. to ISO 8041: <2,5 m/s²
- Total body vibration acc. to ISO 8041: <0,5 m/s²
- Drive
- Traction hydraulics: Hydrostatic-automotive
- Axles: HD axles, 8 wheel nut rim; planetary axle and automatic limited slip brake, swing axle at rear
- Speed / option: 20 / 40 kph
- Brakes and steering
- Service braking system: Combined brake hydrostatic and multi-disc brake
- Parking brake: Multi-disc brake running in oil bath
- Steering: Fully hydraulic articulated steering
- Tank capacity
- Fuel: 105 l
- Hydraulic oil: 95 l
- Dimensions
- (A) Wheelbase: 2,195 mm
- (B) Chassis length: 4,725 mm
- (C) Overall length with standard bucket: 5,450 mm
- (D) Digging depth: 120 mm
- (E) Max. working height: 4,120 mm
- (G) Loading height with pallet forks: 3,225 mm
- (H) Max. dumping height: 2,700 mm
- (I) Front end height: 1,690 mm
- (J) Dumping width: 925 mm
- (K) Seat height: 1,420 mm
- (L) Cab height / option: 2,630 / 2,530 mm
- (M) Max. bucket pivot point: 3,450 mm
- (N) Overall width / option: 1,920 / 1,820 - 2,070 mm
- (O) Inner turning radius: 1,940 mm
- (P) Outer turning radius: 3,740 mm
- (Q) Outer radius with standard bucket: 4,270 mm
- Working hydraulics
- Delivery rate / option: 76 l/min / 88 l/min (Flow Sharing) / 104 (Load Sensing) l/min
- Operat. pressure: 210 bar
- Weights
- Operating weight cabin incl. Original tyres, driver and standard bucket: 5,300 kg
- Lifting capacity: 3,300 kg
- Tipping load, straight, pallet fork acc. to ISO 8313: 3,325 - 3,677 kg
- Tipping load, straight, bucket acc. to ISO 8313: 3,751 - 3,918 kg
- Tipping load, articulated, pallet fork acc. to ISO 8313: 2,625 kg
- Tipping load, articulated, bucket acc. to ISO 8313: 3,020 kg
- Transport of materials
- Specific material weight: 1,6 t/m³
- Bucket volume acc. to ISO 8041: 1,00 m³
- Recommended bucket width: 1,9 m
