  5. Schliesing - Model 105 MX - Tow Behind

Schliesing - Model 105 MX -Tow Behind

SHARE

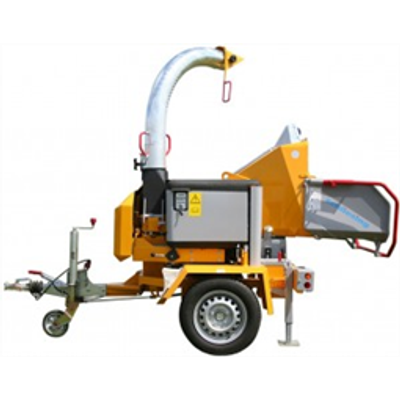

Wood chipper with Kubota diesel engine of 22 hp (16.1 kW) on single-axle chassis (80 km/h). Towing hitch with inertia brake. Front jockey wheel, rear support leg. Road lights conforming to StVZO. TÜV certificate and ABE (General Operating License) (D, NL, F)
Most popular related searches
hydraulic feed
noise insulation
chipper
oil separation
  • 20 hp Kubota diesel engine
  • Handles up to 13cm
  • Single-axle chassis
  • Approx weight < 750 kg
Chassis Wood chipper with Kubota diesel engine of 22 hp (16.1 kW) on single-axle chassis (80 km/h). Towing hitch with inertia brake. Front jockey wheel, rear support leg. Road lights conforming to StVZO. TÜV certificate and ABE (General Operating License) (D, NL, F)
Hopper / housing Feed hopper with flap, pivoting discharge chute in accordance with EN. Adjustable discharge chute deflector flap. Noise insulation.
Chipping unit Chipping unit with safety circuit as per EN 13525 requirements. 2-blade disk with fully adjustable knives. Possibility to reposition anvils (horizontally / vertically). Protection against entangling.
Hydraulics Separate hydraulic circuit. Feed rollers with hydraulic forced feeding and separate oil motor. Hydraulic chip size adjustment.
