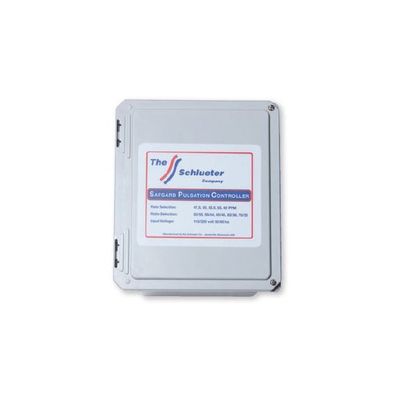

Schlueter - Model 23068/23071 -Wiring Diagram for Pulsation Controller
Powervolt Branded Transformer Wiring: For 120v operation Tie (1) to (2) & (3) to (4) fuse at 5 AM PS. For 240V operationTie (2) to (3) (1) and (4) are input voltage, fuse at 3 AMPS.
Pacific Transformer Wiring For
115 Volt input
- Connect WHITE and BROWN to one supply
- Connect BLACK and RED to Other supply
- And 24 Volt output
- Connect ORANGE to one output
- Connect YELLOW and BLUE together
- Connect VIOLET to other output
For 230 Volt input
- Connect WHITE to one supply
- Connect BLACK and BROWN together
- Connect RED to other supply
- And 24 Volt output
- Connect ORANGE to one output
- Connect YELLOW and BLUE together
- Connect VIOLET to other output
