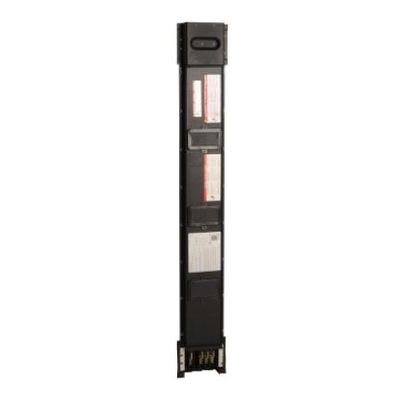

Schneider - Model PBCE4B100AST120B -Straight Length Busway

FromSchneider Electric

SHARE

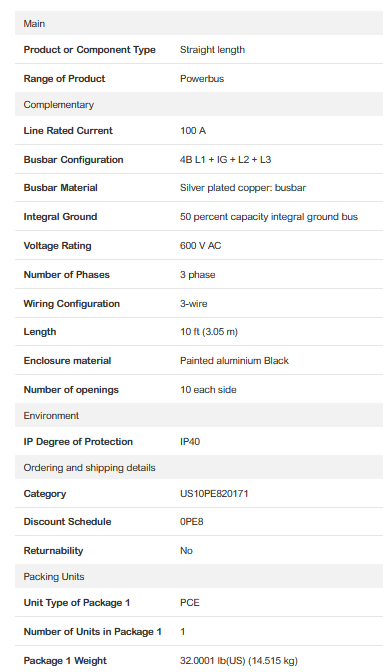

Straight length, Powerbus busway, max 100A rated, 600VAC, 3 phase, 3 wire, 4B config, 10ft.

Most popular related searches

water flow sensor

electrical grounding

Product availability: Non-Stock - Not normally stocked in distribution facility

Available in 100A. 225A, and 400A for up to 600V systems
Up to 5 conductor bars for electrical efficiency
50% integral ground standard feature
10 plug in openings for 10ft section; 3 plug in openings for 4ft section
No special tools to connect busway joints or plug in units
