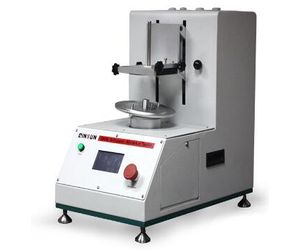

QINSUN - Model DIN 53863 -Schopper Abrasion Tester
The Schopper Abrasion Tester is used to test the abrasion resistance of fabrics, which is mostly used in the testing of automotive interior materials.DIN 53863 part 2 "Abrasion test of textile surfaces (rotational wear test)", GME Standard 60345, GMW Standard 3283, VW/Audi Zentral-Norm PV 3908
For fabrics, abrasion resistance is an important indicator to measure its performance and durability. During the test, friction is applied to the rotating sample in the tangential direction through the friction member, and the wear resistance of the sample is measured.
The Schober Abrasion Tester can be used to test the appearance change of the specimen after friction or wear test.
1. Rotation speed: 75rpm;
2. The cone angle is 166°;
3. The tilt angle of the test head bracket is 7°;
4. Sample size: 100cm2;
5. Test area: 50cm2;
6. The arch height of the sample is adjustable, equipped with measuring accessories, the range is 0 ~ 10mm;
7. Sample down pressure: adjustable from 0.5N to 25N,
8. A set of load weights: 50g, 100g, 250g, 500g, 1000g, 1500g;
9. Dimensions: 325×565×560mm;
10. Weight: 35kg;
11. Power supply: 115/240V, 50/60Hz;
12. Power: 130W.
