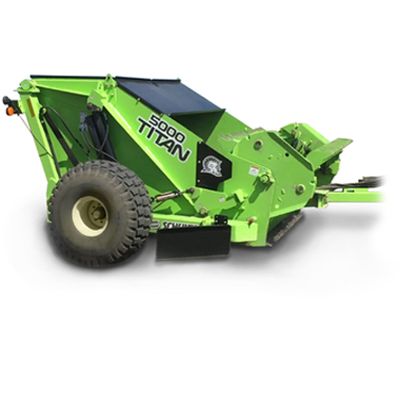

Schulte IndustriesModel 5000 Titan 2 -Rock Pickers Windrower

SHARE

Spend more time picking and less time dumping with the Schulte Titan Rock Picker. Super wide 7′ grate with wide or narrow spacing options. Huge 5 cu. yd. bucket (actual stone picking capacity). Big 22.5L x 16.1 14 ply tires for flotation to handle the loaded weight. 6.5 foot tall dump height for larger piles and truck loading. 450 BHN Steel teeth and T-iron tops for extra-long life. Greater range of grate movement (lower picking, and higher lift). Heavy Duty Magnaloy Hytrel coupling for Direct Drive Motor. Six inch larger reel than the original Titan. Improved sweeping angle and combing of batts to rock and ground. Larger 1.5″ batt pin vs 1.25″ on the original Titan. Heavier 2.5” grate pin & spring steel bushing vs 1.75″ on the original Titan.

Most popular related searches
  • Weight (Approximate): 8930 lbs. (4060 kg)
  • Overall length: 255” (6477 mm)
  • Width with tires: 159” (4038 mm)
  • Width less tires: 127” (3226 mm)
  • Dumping height: 79” (2007 mm)
  • Grate Width: 84” (2134 mm)
  • Hopper capacity: 5 cu. yds. (3.82 m 3)
  • Tire size: 22.5L x 6.1 x 14ply
  • Required horsepower: 125 HP (93 kW)
  • Required hydraulic pressure: 12 GPM
  • Hydraulic motor displacement: 62.7 cu. inch/rev (1027 ml)
  • Cushion Valve Cracking Pressure: 12 GPM@2200PSI, 4 remote outlets
  • Recommended Reel Speed: 36 rpm
  • Picks rocks: 2” - 27” (5cm - 69cm)
