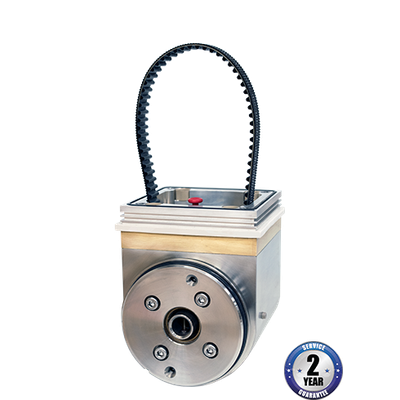

SCI - Model MC-Series -Internal-Mount End Block

With a more compact design than the SC and a lower power rating, the MC is designed for smaller systems.

Most popular related searches

Fill and drain

Patented; water completely fills the target for cooler operating temperature/high power; completely drains for target changes

Drive bearings

Exclusive to SCI; tested to verify years of trouble-free operation

Power transfer

Brushless, patented; no brushes to replace and no carbon brush dust; high power rating and reliable power transfer

Vacuum, water seals

Dual lip and redundant; tolerate running dry; easily replaced without removing the end block; can be monitored

Target attachment

Attaches to targets from any vendor for economical sourcing; high load bearing; fast target changes

Mounting

Can be mounted in any orientation using existing mounting holes and utility connections; adjustable magnet bar sputter angle

Drive

Robust, reliable inverter-duty motor and belt drive; allow design flexibility, easy TTS distance changes; monitored rotation

Features & Benefits
