2p-LABS - Model X1000 Series -Scientific Radar Sensors for Research Applications

SHARE

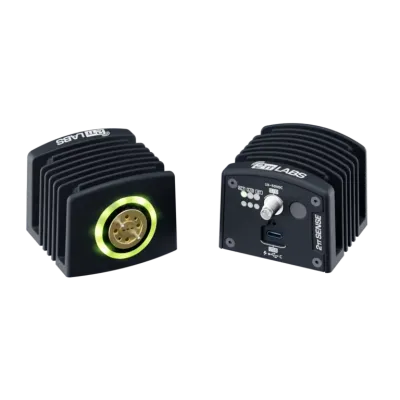

The X1000 series scientific radar sensors from 2π-LABS are designed to empower researchers with high-performance radar technology, offering exceptional range resolution, stability, and accuracy. These pocket-sized sensors are equipped with a WR 6.5 waveguide interface and compatible with UG-387/U standard flanges, with dielectric lens antennas available as alternatives. The sensors provide a plug-and-play experience through a USB-C interface for power and data, and support a SCPI-like protocol and an open source Python library, ensuring seamless integration with existing research tools. Operating at a frequency range of 126 to 182 GHz, the X1000 series delivers a -3 dB range resolution of 2.4 mm in air. The system supports FMCW modulation and provides precise measurements at rates of up to 1 kHz, with accuracy levels reaching up to 1 μm. This technology is particularly beneficial for scientific endeavors requiring meticulous measurement and adaptability, with an array of optional accessories to further customize the user experience.

Most popular related searches
radar sensor
research tool
sensor system
scientific research
research sensor

The X1000 series scientific radar sensors offer maximum freedom to advance your research. Based on our high-performance   technology the sensors offer outstanding range resolution, stability and accuracy. Scientific variants of the X1000 series are equipped with a WR 6.5 (IEEE WM-1651) waveguide interface with an UG-387/U standard flange. Dielectric lens antennas are available as an alternative upon request.  A plug & play and easy to use lab-suitable USB-C interface for power and data based on USBTMC, a SCPI-like protocol interface and an open source Python wrapper library offers convenient connectivity to connect with the research tools of your choice.

  • Operating Frequency: 126 to 182 GHz* D-band
  • Sweep Bandwidth: 56 GHz* -3 dB range resolution of 2.4 mm in air
  • Modulation: FMCW Frequency Modulated Continuous Wave
  • Channels:
  • 1x TRX transceiver, copolar
    2x RX receivers
    Options:
         Co-Polar left & right
         Cross-Polar embedded OMT
  • Accuracy: Up to 1 µm at full sweep bandwidth
  • Precision: Up to 100 nm
  • Measurement Rate: Up to 1 kHz at 5.5 m maximum distance** and full sweep bandwidth
  • Temperature Range: -20°C to +50°C / -4°F to +122°F
  • Protection Level: None lab-tool with open waveguide and USB-C
  • Power Supply: 19 to 32 VDC galv. isolated or
  • Options: USB-variant: USB-C power and data ETH-variant: PoE Power-over-Ethernet IEEE 802.3at Type 1 (13W)
  • Interfaces
  • BLE – Bluetooth Low Energy
    PNP Input TTL-Level
    PNP Output 3.3V to 32V galv. isolated
  • Options:
    USB-C
    Dual 1G Ethernet switched 1 Gigabit Ethernet, TSN ready switch
  • Protocols:
  • SCPI Standard Commands for Programmable Instruments for Raw Data
    OPC-UA OPC Unified Architecture
  • Waveguide
    / Antennas:
  • Options:
    Waveguide WR6.5, IEEE WM-1651, UG-387/U flange
    Antennas dielectric lens:
         a) Collimated 2.8-3.5° HPBW half-power beam-width dielectric lens
         b) F=100 focal dielectric lens, spot size D = 3.3mm
         c) F=150 focal dielectric lens, spot size D = 4.3mm
         d) Custom focal dielectric lens
  • Mechanical:
  • Dimensions: 120 mm x 60 mm x 70 mm (L/H/W)
    Mounting: 4 through holes for M4 fasteners, 4 blind holes for 3.0 mm dowel pins
  • Compliance
    /Certificates:
  • Work in progress (subject to change) and planned for 2025:
    EU & CEPT: CE “RDI-S” device class according to ECC DEC (22)03
    US: FCC Part 18
