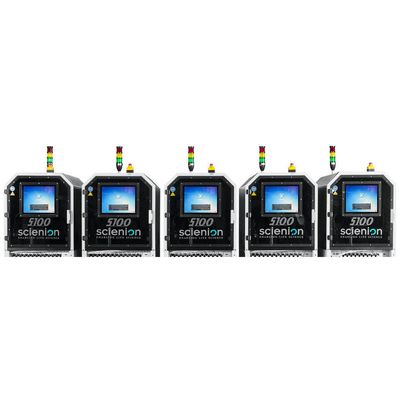

sciFLEXARRAYER - Model S100 -Ultimate High-Throughput Production Equipment
The ultimate high-throughput production equipment, compatible with various dispensing technologies. The targets are placed on customized carriers that move towards the dispense head mounted on each S100 portal and carriers are shuttled in between the S100 portals via a conveyor belt. For customer specific applications, the system can be modified to meet any request for a variety of carrier formats. Each portal can be equipped with up to 12 liquid channels.
This modularity allows precisely configuring the system to the required production volumes. It meets the high throughput production requirements of most bioarray formats like microplates, slides, wafers and a variety of biosensors.
Already being used by many diagnostic companies around the world.
- Dispense Volume: 30 – 800 pL/drop
- No. of Portals: Unlimited
- No. of Dispense Capillaries: Up to 12 in each portal
- Distance Dispense Capillaries: 9 mm increments
- 3D Dispense Control: Integrated CCD and two 3D drop cameras
- Axis system: X-Y magnetic – Z spindle drives, conveyor belt
- Resolution (step): 1 µm
- Precision: < 3 µm
- Accuracy: < 5 µm
- Dimensions (L,W,H) with enclosure: 1300 x 800 x 1200 mm
- Weight: 420 kg each portal
