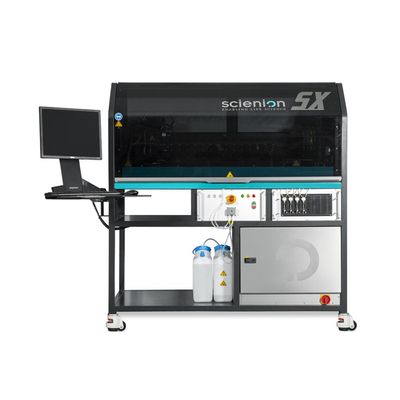

sciFLEXARRAYER - Model SX -Automated Liquid Dispensing System
FromScienion GmbH
sciFLEXARRAYER SX is a unique automated liquid dispensing solution for high throughput production of multiplex tests for diagnostics and life science. Thanks to its precise axis system and increased dispensed area, the SX delivers outstanding reproducibility between batches, enabling a printing capacity of 170 slides or 27 MTPs per batch.
Most popular related searches
sciFLEXARRAYER SX system is compatible with both sciDROP PICO and sciDROP NANO dispensing technologies and is built to high-quality standards: heavy-duty design and low maintenance components as the rest of SCIENION´s portfolio.
- Compact All-in-one design
- Optimized For high scale batch production.
- Fully automated User friendly through auto-drop function and walk-away system
- Clean-room compatible Reduce particle contamination and turbulences
- Dispense Volume: 30 – 800 pL/drop
- No. of Dispense Capillaries: From 1 to 8 PDC channels
- Distance Dispense Capillaries: 4.5 mm or a custom distance
- Target Holder: x=800; y=375 mm
- Capacity: Up to 27 MTPs or 170 standard glass slides
- Axis system: X-Y linear magnetic & Z spindle drives
- Resolution (step size): 1 µm
- Precision: < 3 µm
- Accuracy: < 5 µm
- Options: Spot-on-the-fly, 3D drop camera, vacuum target holder, online target alignment, online array QC software
- Dimensions (L,W,H) with enclosure: 1670 x 850 x 1760 mm
- Weight: 450 kg
