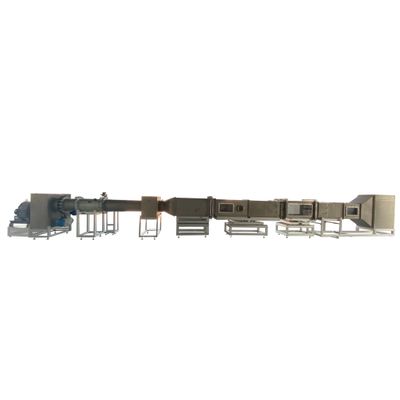

SCINCE - Model SC-16890 -General Ventilation Air Filter Test System

ISO 16890, EN 779, ASHRAE 52.2, etc.

Ø Fractional efficiency

Ø ePMx1.0, ePMx2.5, ePMx10

Ø Pressure drop

Ø Pressure drop vs. air flow rate

Ø Arrestance

Ø Dust holding capacity

Ø Arrestance vs. dust load

Ø Pressure drop vs. dust load

Ø Filter efficiency@0.4μm vs. dust load

Ø High test precision. Using well-known brand spectrometer, aerosol generator and other components.

Ø Automatic aerosol concentration regulation for greater convenience.

Ø More auto-design, e.g. air volume regulation, pneumatic sealing, dilutor switching, compressed air pressure alerts, test report generation etc.

Ø Good stability and high reliability. More than 10 items, 1000 tests need to be conducted, including counter and system self-cleaning, dust generation stability, and concentration uniformity, etc.

Ø Control system is safe and stable. The operator control and operate the test system through the computer, and observes the test process and test results synchronously.

Ø Independently developed software system with clear interface.

Product information, function selection, test results, etc. are displayed in fixed area.

Ø 2 ways of printing test results on A4 reports or adhesive labels.

Ø Test results can be exported in Excel format for easy storage. A4 reports can be edited.
