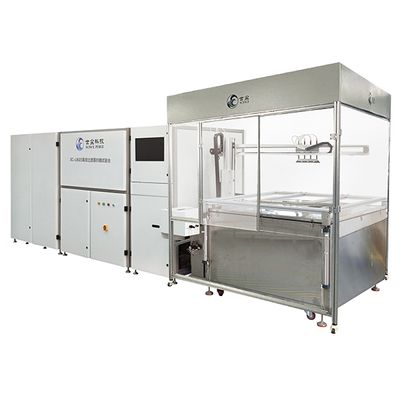

SCINCE - Model SC-L8023 -Automatic Scanning Test System

FromSCPUR
SHARE
Test Overview: Used for testing HEPA/ULPA filters per EN 1822 & ISO 29463, focusing on MPPS capture. Suitable for panel, deep pleated, V-bank, side-gel, and irregular filters (cylinder, triangle, etc.). Main Functions: Filtration Efficiency Test: Uses DEHS particles (0.1–0.3μm) to measure MPPS efficiency.  • HEPA (H13 ≥99.95%, H14 ≥99.995%)  • ULPA (U15 ≥99.9995%) Local Leakage Test: Scans frame, corners, sealant for leaks (H13+ required). Pressure Drop Test: Measures resistance at rated airflow. Integral Efficiency Test: Overall filter efficiency (H10–H12), no leak test needed. Manual Scanning Test: For irregular filters; detects and locates leaks manually.
Most popular related searches
analyzer test
ULPA filter
filter testing
HEPA
integrity monitoring
HEPA filter
filter leak monitoring
leak pressure test
leak pressure testing
leak locating

· Automated Workflow: Reduces manual operations and improves efficiency.

· Real-Time Data Processing: Automatically records, calculates, and analyzes test results.

· Smart Alerts: Built-in notification system minimizes human errors.

· User-Friendly Interface: Intuitive and easy to use with minimal training required.

· Flexible Report Export: Generates editable Excel reports and printable labels.

· Data Management & Backup: Supports automatic data storage and backup to prevent data loss.

· Remote Access: Enables remote diagnostics, debugging, and calibration.

· Fully Automatic Scanning Test: One-button initiation for no manual intervention.

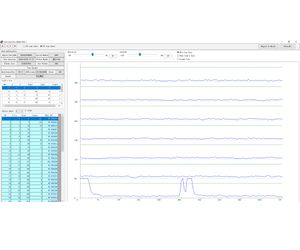

· Real-Time Display: Live updates on results with 2D and 3D leak visualization.

· Report Generation: Easy Excel report creation and label printing.

· Automatic Concentration Adjustment: Optimizes testing conditions.

· Remote Capabilities: Diagnose, troubleshoot, and calibrate the system remotely for efficiency.
