CapeSymModel CsI-38×38-R6231 -Scintillation Detector Assembly

SHARE

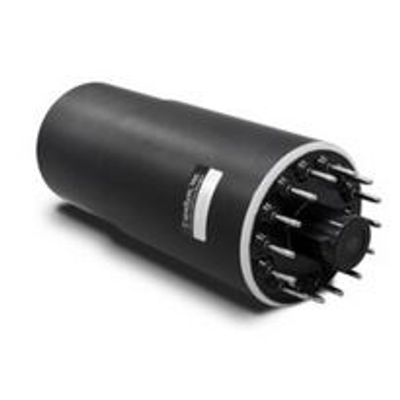

CsI-38×38 Scintillation Detector Assembly includes Ø38.1×38.1 mm  (Ø1.5”x1.5”) CsI(Tl) crystal coupled to Hamamatsu R6231 PMT hermetically packed in an Aluminum housing with 0.5mm thick walls and integrated magnetic shield and temperature sensor (optional)

Most popular related searches
  • Detector type CsI(Tl)
  • Detector size Ø38.1×38.1 mm
  • Energy range From 10 keV
  • Typical resolution 6% at 662 keV
  • Ambient dose rate N/A
  • Typical sensitivity,
  • cps/(µSv·h-1) 800 (137Cs)
  • 400 (60Co)
  • Neutron detection No
  • Readout  PMT+JEDEC B14-38
  • Dimensions Ø60×156 mm
  • Weight 530 g
