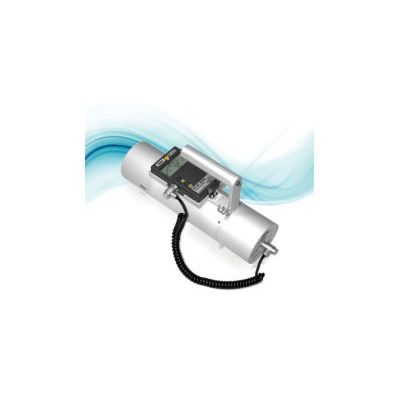

Automess - Model 6150AD B -Scintillation Dose Rate Probes

FromSouthern Scientific Ltd. - a LabLogic Company

SHARE

Scintillation dose rate probe for 6150AD 5/6. High sensitivity organic scintillator for measuring X-ray and Gamma radiation.

Most popular related searches

dose rate meter

radiation dose monitoring

gamma radiation detection

gamma radiation

radiation monitoring

radiation detection system

gamma radiation monitoring

scintillation monitor

Measuring unit consting of the scintillator probe 6150 AD B for use with the dose rate meter 6150 AD5/6
High sensitivity due to large scintillator: Dose rate measurements starting from as low as 5 nSv/h
Large energy range 23 keV to 7 MeV
Four parallel operating modes with any desired display:
Dose rate
Average value of dose rate (value or standard deviation display, can be switched over)
Maximum dose rate value
Cumulative dose
Adjustable dose and dose rate warning thresholds
Automatic range switching, easy operation
Inherent background radiation <1 nSv/h
Automatic recognition of probe by 6150AD 5/6 rate meters.

Detector: Organic scintillator ZnS coated, 3" (diameter) x 3" (height), Density 1,032 g/cm3
Energy Response: 23 keV to 7 MeV
Dose rate measuring range: 50 nSv/h to 99.99 µSv/h
Temperature Range: -30°C to +50°C
Humidity: Nominal range 600 hPa to 1300 hPa
Battery Life: Approx. 120 hours with alkaline battery
Protection Class: IP 67 according to DIN 40050 (water-tight and buoyant)
Dimensions: 353 x 195 x 96 mm
Weight: Approx. 2.5 kg (probe with measuring unit)
Carrying Strap: Plastic, decontaminable, length adjustable from 110 - 150 cm
