SCiO - Infrared Spectrometer
We took the traditional Near Infrared Spectrometer and, using advances in micro-optical technology, miniaturized it. The patented optical head is just a few millimeters in size and provides sensitivity and accuracy levels on par with the best bench spectrometers. The low power consumption and zero warm up time make it highly responsive and extremely efficient, allowing it to perform hundreds of scans from a small rechargeable battery
Dimensions Handheld Device: Cover: 67.7 x 40.2 x 18.8mm
Without cover: 54 x 36.4 x 15.4mm
Weight Handheld Device: 35 gr

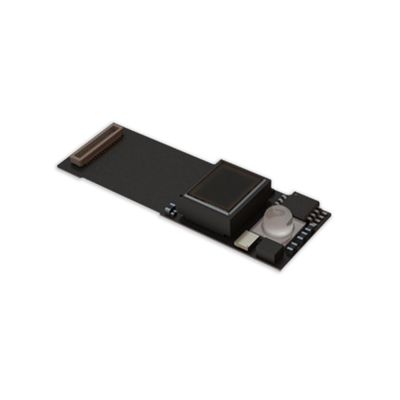

Standalone Sensor Module: 27.5 x 9.5 x 3.15mm
Operational distance: Contact to 2 cm (can be customized, contact us for more details)
Typical scan time: 2-5 seconds
Connectivity: Online and offline scanning supported
Temperature range - operation: 4-35°C
Temperature range - storage: -40-85°C
App compatibility: iPhone 5 and above
iOS 9 or higher
Android 4.3 or higher
Requires a Bluetooth Low Energy device
Our backend cloud provides the analytical processing power and hosts the material databases
Material Databases
These databases can be collected by Consumer Physics, or by our customers. Some databases are publicly available, and some are proprietary and available only to a specific organization
Algorithms and Models
Our cloud hosts the chemometric models and algorithms that analyze spectra and convert them into useful material data. These are developed by our team of experts according to individual business requirements.
Our chemometric models run on a linearly scalable architecture, which allows us to provide fast response times to a practically infinite number of users and devices
