SCIPRIOS - Customized Lab Robot

Our competence includes:

• liquid handling (mixing, shaking, heating, stirring…)
•  substrate handling (glass, wafers…)
• film deposition from solution (spincoating, doctor blading, drop casting,…) or using vacuum deposition systems
•  optical, electronic and morphological measurement techniques for solutions, thin films and full devices

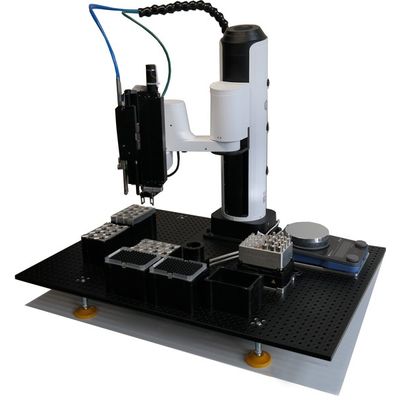

Basic  Hardware-Components:

1x – 4-axis robot
Pipetting channel

• Up to 1 ml volume
• High precision Hamilton ZEUS module for a large range of solvents and inks
• Ink mixing

Gripper kit

• Electronic gripper with 3 mm stroke per finger for substrate and vial lid transport

Standard monodeck equipment

• 2 Pipette tip racks, 2 Substrate carrier stacks, 1 Position for active carrier (8 substrates each)
• Trash bin

Basic Software

•  Labview-based
• Experiment configurator
• Saving/Loading previous experiments
• Multiple layers can be configured per substrate with annealing steps after each deposition
• Configuration of common parameters for every substrate
• Selection of parameter variations, e.g. spin speed, annealing temperature, ink amount, ink dispensing mode,…per substrate
• Data export in different formats
• Remote software maintenance capability
