Beijing Scitlion Technology Corp., Ltd.

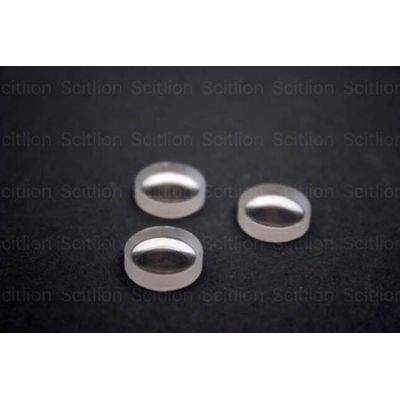

Scitlion - Model H-K9 -Plane Convex Lens
Material：H-K9、Sio2(quartz) and other hioptical glass; fluoride crystal, a germanium, silicon and other optical material. Type：Plano-concave lens, plane convex lens, meniscus lens, double convex lens, concave lens. Dimensional tolerance：±0.05~±0.2；Focal length tolerance：±0.5%~±0.2%；Center deviation ：1′~3′；Surface Flatness：λ/20~λ/2； Surface Quality：II~III； Clear Aperture：90%；And can be coated according to customers requirements.
Most popular related searches
- Material：H-K9; Dimensional tolerance:±0.1
- Focal length tolerance：±1%
- Central Thickness tolerance：±0.1
- Surface Flatness：λ/4; Surface Quality:II~III
