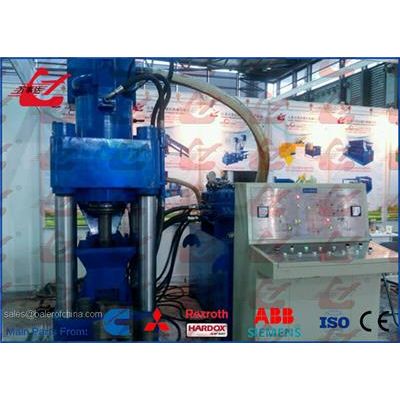

1. Product Name: Scrap Briquetting Press(Y83-2500)
2. Application: Y83-2500 Scrap Briquetting Press is applied to compress sawdust of steel, iron, aluminum & brass into blocks of high density to reduce burning loss in smelting, to make recycling & smelting easy and convenient. This machine is especially useful in casting plants substituting iron sawdust for cast iron as raw materials.
3. Specifications:
Nominal Force(kN):2500
Briquette Size(mm):Φ120×(50-60)
Pressure on the bale(kN):220
Power(kW):18.5
Capacity(kg/h):800 (Cast iron sawdust)
Operation:Manual or PLC semi-automatic operation
Hydraulic drive, operation stable, no vibration, safe & reliable.
Simple underground footing needed.
4. Quality: This machine apply to ISO9001: 2000 standard.
5. Service:
1) One year guarantee and lifelong maintenance.
2) Any problem, you can call us directly.
