Wanshida - Model Y83Q-135 -Scrap Metal Balers

FromJiangsu Wanshida Hydraulic Machinery Co., Ltd

SHARE

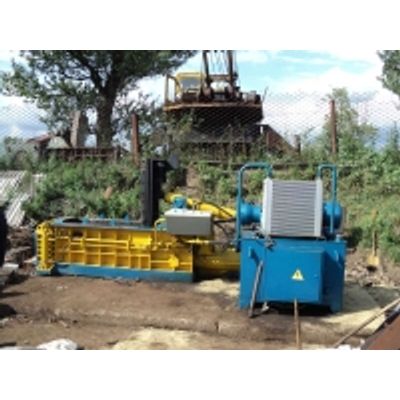

Our Y83Q-135 Scrap metal baler pushes the bale out forwardly. It is mainly applied in metal smelting in small and medium scale, as well as waste metal processing and recycling. Manipulated by hand, this machine specializes in processing the light and thin materials. Its compressed bale is applicable for small processing furnace in the steel plant. The bale is about 240mm high and its length is varied by different quantity of feeding materials.

Most popular related searches

scrap metal baler

non-ferrous metal copper

non-ferrous metal

metal recycling system

non-ferrous metal aluminum

metal recycling

Supply Ability: 30 sets/months
Min. Order Quantity:1 set
The nearest port: Shanghai port
Guarantee: 1 Year
Color: User Defined
After Sales Service Provided: User Defined

Cylinder pushing force 135 ton
Hydraulic Pressure 25MPa
Capacity 3tons/h
Press room size(L×W×H) 1300×600×600mm
Bale dimensions(L×W×H) 600×240mm
Cycle time 160 sec.
Motor Power 22kW
Weight 6500KG
Baler dimensions(L×W×H) 5500×2100×1950mm

This forward out baler is driven be hydraulic devices. In the compact structure with rational design, it is small in volume and light in weight. Moreover, it works with small inertia of movement, low noise, stable but flexible operation and other highlights.
Our machine utilizes the integrated hydraulic and electrical control. It is easy for use and maintenance.
This forward out baler is featured by strong adaptability to diversified working conditions and wide applicable range. It can be used as the machining equipment in the metal recycling unit and for furnace charge in the casting room of factory.
Aside from low energy consumption, this product also incorporates such characteristics as easy installation, safe and dependable use, high efficiency, low cost and so on.
