Model CSE-B 12-24 kV, 250 A CSS-B 12-24 kV, 250 A -Screened Separable Connectors

SHARE

Application: Screened separable cable connector is used for XLPE insulted 1-core or 3-core cables with Al or Cu conductor for 12-24 kV. Fit standard bushing of outer cone type A according to EN50181.

Most popular related searches
screen separator
cable separator
can separator
ozonation
  • GB/T12706.4
  • IEC 60502.4

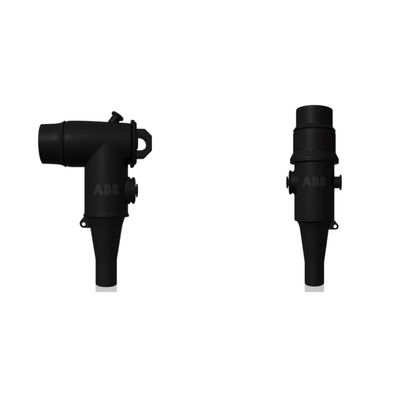

  • Elbow cable connector CSEB and straight cable connector CSS-B are manufactured in EPDM rubber with three layers: a conductive inner layer, an insulation layer and a conductive outer layer. They are vulcanized together for the best possible interface between the layers. It has good UV, Ozone and tracking resistance for outdoor use. The connectors have capacitive test point covered by conductive rubber cap to ensure fully screened.
  • Delivered in 3-phase kits complete with crimping cable lugs, bail holder, installation tools and grounding wires, designed to ensure reliable installation
  • Earthing kit for 1-core or 3-core cable must be used (Can be ordered separately)
