Wrights Dowson - Screw Conveyor Component

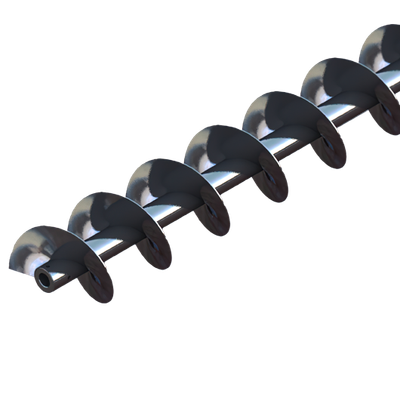

• Complete worm on pipe assemblies from 20mm to 2500mm diameter,
• Range of continuous stock flight material from 100mm to 405mm diameter,
• Individual segments – full pitch, half pitch, quarter pitch or custom pitch from 12mm to 1200mm diameter in varying thicknesses of material to suit every application. Tapered segments, Ribbon Segments, and Paddle Blades. Segment Thickness : 2mm up to 32mm thick in Mild Steel & Stainless Steel Grades 304, 310, 316, 321. Segment Thickness : 3mm to 16mm in Abro, Raex & Hardox Graded 400 & 450,
• Segments manufactured to your specific requirements, in any material,
• Individually designed flights, bearings, covers, inlets, outlets, and mountings,
• Alternative materials of construction, including Carbon Steel, Stainless Steels Grades 304, 310, 316, 321, and Abro, Raex , Hardox, Grades 400/450 Abrasion Resistant Steels,
• Heavy duty construction,
• Full range of Shaftless screw sections in mild steel and stainless steel , dimensions to suit application,
• Casing Wear Plates : Replacement or New , up to 10mm Thick in Mild Steel, Stainless Steels Grades 304, 310, 316, 321, and Abro, Raex , Hardox, Grades 400/450 Abrasion Resistant Steels,
• Spare Gear Boxes, Spare Geared Motor Units Hollow Bore & Foot Mounted, Spare IEC Flanged Adaptors.

Wrights Dowson Group screw conveyor segments and blades can be found in use across a broad spectrum of industries including food, cement, coal, pharmaceuticals, and waste treatment. Whilst an array of flighted products are used in material compressors, water and effluent pumps, mixers, heat dissipation for stacks and even in large size concrete mixers.

Benefits and Features of segmented flighting:

• Stainless Steel flights used in the food industry contribute to reduced contamination,
• Reduced replacement costs,
• High suitability for conveying abrasive materials.
