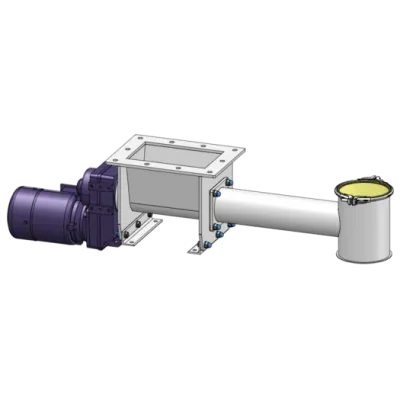

Paul Groth - Model DRS-K -Screw Feeder for Powders and Granulates
The Screw Feeder DRS-K is engineered for the precise dosing of powders and granulates with capacities ranging from 9 to 51,000 liters per hour, depending on size. Utilizing a modular system, this feeder is crafted from stainless steel AISI 304 and designed for easy maintenance and sanitation. The feeder's basic configuration includes surfaces meticulously prepared to meet food safety standards, with options for further customization. Key features include a pneumatic shutter stamp to prevent material leakage and a thread pull-out device for swift cleaning. The feeder can handle both standard and customized outlet specifications and is equipped with robust shaft sealing options, ensuring compatibility with a range of temperatures and operational environments. The design adheres to ATEX standards for zones 21 and 22, making it suitable for challenging industrial conditions. Optional enhancements cater to humidity tolerance and sticky products, providing a versatile solution for different applications.Most popular related searches
screw feeder
food safety standard
dosing screw
granulator
precision dosing
temperature sensor
food safety
surface preparation
tube cleaning
dosing system
Dosing screws type DRS-K are developed for dosing of powders and granulates. The dosing capacity is between 9 and 51,000 l/h depending on the size.
Our proven modular system for dosing screws meets most requirements for dosing of powders and granulates.
They are made of stainless steel 1.4301 (V2A, AISI304) and are easy to clean.
If you have customization requests, we would like to consider them.
- Parts in contact with the product are made of stainless steel AISI 304
- Sealings in contact with the product are food compatible according to 1935/2004/EG and FDA
- Designed for biologically dry food and dry cleaning, dosing tube dismountable
- Surfaces
outside - pickled and glass bead blasted
inside - welding seams grinded and pickled - Screw feeder with geared motor with temperature sensor for onsite frequency converter
- Progressiv thread pitch in the inlet area
- Transparent lid above the outlet or aspiration connection
- Design for use in the EU
- Inlet 250 x 160 mm
- Screw shaft mounted on one side
- Screw shaft screwed in and easy to change
- Progressive thread pitch in the inlet area
- Double screw blade at the outlet for more exact dosing
- Shaft mounted geared motor in on-slip design
