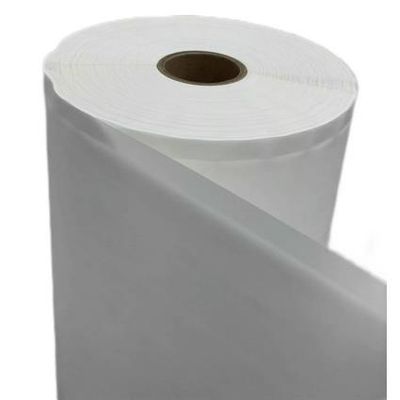

Longmem - Model LM-SW-FL1 -Sea Water Thin-Flim Composite Membrane
LM-SW-FL1,Sea Water Thin-Flim Composite Membrane is a type of filtration membrane used for desalination or the removal of salt and other impurities from seawater.

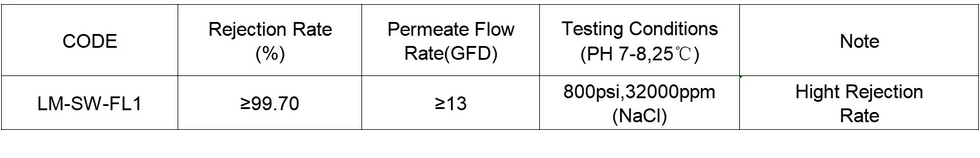

- Model:LM-SW-FL1
- Brand:Longmem
- Size:Width: 1067mm, About 500m/Roll; Customized Length
- Weight:50kgs; Depends on the Meter per roll
- Package:Carton, OEM/ODM
- Delivery Time: 7-14 days
- Certificate:ISO9001,ISO50001,GJB9001C,EAC,HALA,NSF
- OEM/ODM:Accept
- Application:Desalination,Industrial Wastewater and etc.
The LM-SW-FL1 is a specific type of sea water thin-film composite membrane. It is designed for desalination applications, specifically for the removal of salt and other impurities from seawater.
The LM-SW-FL1 membrane features a unique composition that allows for high salt rejection rates and improved performance. It consists of multiple layers, including a thin polyamide film on top of a porous support layer.
This membrane technology offers several advantages, including enhanced fouling resistance, increased durability, and reduced energy consumption. The LM-SW-FL1 membrane is known for ability to produce high-quality fresh water with exceptional efficiency.
It is commonly used in reverse osmosis (RO) desalination systems where seawater is pressurized and forced through the membrane. Through this process, freshwater permeates the membrane while concentrated brine is separated and discharged.
The LM-SW-FL1 sea water thin-film composite membrane has been widely adopted in various industries and applications that require reliable and efficient desalination solutions. Its introduction has contributed significantly to addressing global water scarcity challenges by providing access to clean drinking water in coastal areas or regions with limited freshwater resources.
The production process of the LM-BW-FL1 Brackish Water Thin-Film Composite Membrane involves several steps as follows:
1. Polymer:
The first step is the synthesis of the polymer material that will be used to create the thin-film composite membrane. Typically, polyamide-based polymer is synthesized through a chemical reaction involving monomers such as piperazine and trimesoyl chloride.
2. Solution preparation:
The synthesized polymer is dissolved a suitable solvent to create a solution. The solvent should have good solubility for the polymer and be easily removable later in the process.
3. Substrate preparation:
A suitable porous support material is chosen as the substrate for the membrane. Common choices include polysulfone or polyester materials with specific pore sizes and mechanical strength.
4. Pre-treatment of substrate:
The chosen substrate undergoes pre-treatment processes such as cleaning, surface activation, or coating with an adhesive layer to enhance bonding between the support material and thin-film layer.
5. Casting or spin-coating:
The prepared solution containing the polymer is applied onto the pre-treated substrate using either casting or spin-coating techniques. In casting, a doctor blade technique spreads a controlled amount of solution onto a flat surface, while spin-coating involves spinning at high speeds to evenly distribute the solution over curved substrates.
6. Evaporation and drying:
After application, evaporation techniques are employed to remove most of the solvent from the applied solution on top of the substrate, leaving behind a thin film composed primarily of polyamide material.
7. Chemical cross-linking (optional):
To improve stability and performance characteristics, some membranes may undergo additional chemical cross-linking processes using agents like glutaraldehyde or hexamethyldisilazane.
8. Post-treatment:
Once dried or cross-linked (if applicable), post-treatment processes like annealing can be performed to further enhance membrane properties.
