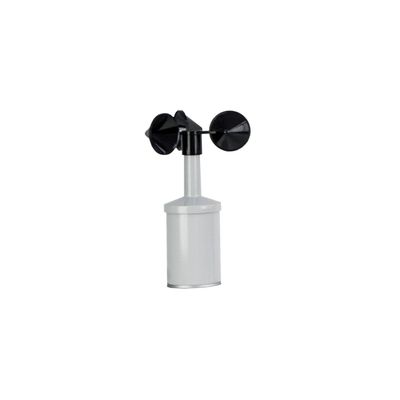

Seac - Model SV8 -Anemometer
Composed of 3 cups conical shaped injected on a stainless steel shaft. The transducer consist on one pair led & phototransistor which provides a pulse output with frequency proportional to wind speed Combined with high performance shielded bearings ensure excellent linearity, over the whole range of measure and high reliability on different temperature-humidity conditions. Low moment of inertia, low-threshold, fast response and low distance constant are guaranteed. The variety of outputs suit most data loggers on market.
Environment
Sensors body is Al-Si aluminium injection moulded and rust preventive painted.
M12 IP65 polarizing connectors are equipped for an easier operation.
Bearings
Both sensors are composed of stainless steel, shielded bearings, which give them excellent dynamic characteristic with very low mechanical friction.
Heating
Optionally both sensors could be provided of internal heating system, in order to avoid bearings and shaft freezing. It is strongly recommended in cold climates.
General
Encoder: Rotary Incremental Photocoupler
Range: 0~60 m/s
Threshold: 0,3 m/s
Accuracy: ±3%
Output options:
Pulses (frequency directly proportional to wind speed)
Current (4-20mA)
Digital 485 Mod-bus
Distance constant: < 2m
Electrical Features
Power supply:
5~26VDC
11~26VDC for 4-20mA
Consumption: 90 mW (@ 12V)
Operating Temperature: -30ºC~70ºC (with heating)
Mechanics
Case: Al-Si aluminium injection moulded and rust preventive painted
Weight: 290 gr (cup wheel included)
Cup Wheel Diameter: 120 mm
Case Diameter: 50 mm
Height: 190 mm (cup wheel included)
Additional Accessories
Shaft Heating System:
Low power heating ( 10w )
Thermostat controlled 4ºC of activation threshold
