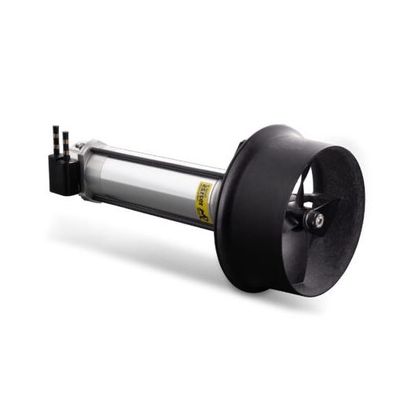

SEAMOR Marine - Model Sturgeon 200 -Underwater Propulsion Thruster
The Sturgeon 200 Thruster by SEAMOR Marine represents a significant advancement in underwater propulsion designed for superior energy efficiency. It achieves a notable reduction in energy consumption, using nearly half the power of conventional industry alternatives. This makes it highly suitable for applications involving ROVs, AUVs, and USVs where optimizing energy use is critical. Central to its efficient performance is the Swiss-engineered Maxon Motor, safeguarded by NASA-grade BAL Seal technology, and built within a sturdy corrosion-resistant 6061 Aluminum casing. Its design prioritizes sustainability with a serviceable replaceable shaft seal cartridge, reflecting a commitment to durability over disposability. Innovative features such as custom props with left and right-handed variations, integrated electronic speed controllers, and real-time feedback mechanisms are catered to the user. The motor control circuitry with RS-485 interface facilitates easy integration and quick deployment. Available in standard 24-volt with 48-volt configurations, this 200 Watt thruster strikes an optimal balance between power, precision, and efficiency for various underwater applications.
Meet the Sturgeon 200—a revolution in underwater propulsion technology. The Sturgeon 200 thruster delivers exceptional performance while consuming almost half the energy of standard industry alternatives, making it ideal for ROVs, AUVs, and USVs where efficiency matters.
At its heart beats a Swiss-designed Maxon Motor, protected by NASA-grade BAL Seal technology and housed in corrosion-resistant 6061 Aluminum. Reliability meets sustainability through a serviceable design featuring a replaceable shaft seal cartridge—built to last, not to discard.
User-focused innovation includes custom right and left handed props, built-in electronic speed controllers, and real-time performance feedback. The onboard motor control circuitry and RS-485 interface enable seamless integration and rapid deployment. Available in standard 24-volt configuration with 48-volt options, the 200 Watt Sturgeon delivers a perfect balance of power, precision, and efficiency for your underwater applications—all backed by SEAMOR Marine’s renowned product development team.
The Sturgeon 200 thruster has all the power you need, independently distributed, designed for efficiency, integrability, and maintenance accessibility.
Dimensions
- Total length: 10.67" (271.0mm)
- Nozzle OD: 4.953" (125.8mm)
- Body OD: 1.75" (44.45mm)
- Prop diameter: 4" (101.6mm)
Thrust
- Forward Max 13.9lb-f (6.3kg) @ 30V
- Reverse Max 6.2lb-f (2.8kg) @ 30V
Maximum Water Temperature Continuous Operation:
- 40°C
Connector:
- Taylor Oceanics, 46-5MBORA-4
- Other connectors available upon request
Communication:
- RS-485
Voltage
- 24 V DC nominal,
- 58 V DC absolute max
