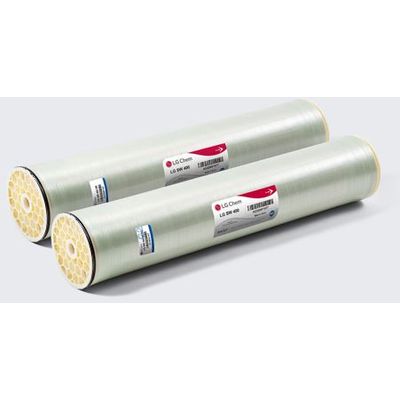

LG - Model SW 4040 R -Seawater Reverse Osmosis Membrane (SWRO)
LG SW R (High Rejection) membranes offer a combination of high rejection and low energy requirements to reduce the total cost of desalination; suitable for medium to high salinity seawater applications.
Most popular related searches
seawater reverse osmosis SWRO
seawater reverse osmosis membrane
seawater reverse osmosis
reverse osmosis SWRO
reverse osmosis membrane
reverse osmosis
SWRO membrane
SWRO
seawater membrane
feed water
- Active Membrane Area: 80 ft² (7.4 m²)
- Permeate Flow Rate: 1,950 gpd (7.4 m³/d)
- Stabilized Salt Rejection: 99.7%
- Minimum Salt Rejection: 99.5%
- Boron Rejection: -%
- Feed Spacer: 28 mil.
- NaCl: 32,000 ppm
- Pressure: 800 psi (55 bar)
- Temperature: 25°C (77°F)
- pH: 8
- Recovery: 8%
- Permeate Flow Variation: +/-20%
- Max. Operating Pressure: 1,200 psi (82.7 bar)
- Max. Chlorine Concentration: 0.1 ppm
- Max. Operating Temperature: 45°C (113°F)
- pH Range, Continuous (Cleaning): 2-11 (2-13)
- Max. Feedwater Turbidity: 1.0 NTU
- Max. Feedwater SDI (15 minutes): 5.0
- Max. Feed Flow: 15 gpm (3.4 m³/h)
- Min. Ratio of Concentrate to Permeate Flow for any Element: 5 : 1
- Max. Pressure Drop for Each Element: 1.0 bar (15 psi)
- Length: 1,016 mm (40 inch)
- Element O.D.: 100 mm (3.9 inch)
- Perm Tube I.D.: 19 mm (0.75 inch)
- Weight: 4.2 kg (9.3 lbs.)
