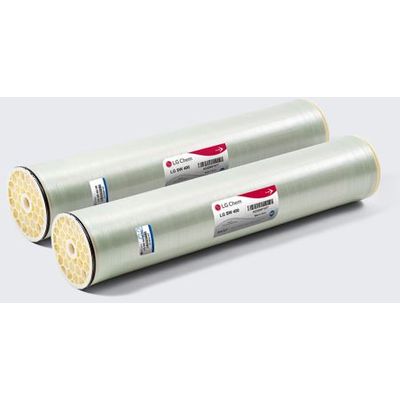

LG - Model SW 440 GR G2 -Seawater Reverse Osmosis Membrane (SWRO)
The next generation LG SW G2 membranes have achieved record-breaking salt rejection, improving the product quality up to 45% compared with the conventional technology. With enhanced Thin Film Nanocomposite (TFN) technology, LG SW G2 membranes can significantly reduce the cost of desalination. LG SW GR (Great Rejection) membranes offer a combination of high rejection and low energy requirements to reduce the total cost of desalination; suitable for high salinity seawater applications.
Most popular related searches
seawater reverse osmosis SWRO
seawater reverse osmosis membrane
seawater reverse osmosis
reverse osmosis SWRO
reverse osmosis membrane
reverse osmosis
SWRO membrane
SWRO
seawater membrane
feed water
Product Specifications
- Active Membrane Area: 440 ft² (41 m²)
- Permeate Flow Rate: 8,250 gpd (31.2 m³/d)
- Stabilized Salt Rejection: 99.89%
- Minimum Salt Rejection: 99.75%
- Boron Rejection: 93%
- Feed Spacer: 28 mil.
Test Conditions
- NaCl: 32,000 ppm
- Boron: 5 ppm
- Pressure: 800 psi (55 bar)
- Temperature: 25°C (77°F)
- pH: 8
- Recovery: 8%
- Permeate Flow Variation: +/- 15%
Operating Specifications
- Max. Operating Pressure: 1,200 psi (82.7 bar)
- Max. Chlorine Concentration: < 0.1 ppm
- Max. Operating Temperature: 45°C (113°F)
- pH Range, Continuous (Cleaning): 2-11 (2-13)
- Max. Feedwater Turbidity: 1.0 NTU
- Max. Feedwater SDI (15 minutes): 5.0
- Max. Feed Flow: 75 gpm (17 m³/h)
- Min. Ratio of Concentrate to Permeate Flow for any Element: 5 : 1
- Max. Pressure Drop for Each Element: 1.0 bar (15 psi)
Product Dimensions
- Length: 1,016 mm (40 inch)
- Element O.D.: 200 mm (7.9 inch)
- Perm Tube I.D.: 28.6 mm (1.125 inch)
- Weight: 16 kg (35 lbs.)
