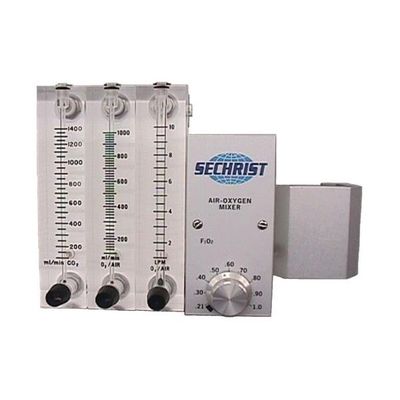

Sechrist - Model 20090 Low Flow -Air/Oxygen Gas Mixers
Specifically designed for ECMO or Heart-Lung Bypass Applications: Accuracy*: +/- 3%. Maximum Flow: 40 LPM. Bleed Flow: 2.5 – 4.5 LPM @ 8 LPM. FIO2 Range: .21 + .01 to 1.0. Gas Supply Range: 50 psig +/- 20 psig. Sechrist Air / Oxygen gas mixers Model 20090 provides for precise mixing of air and oxygen for many clinical applications. The Model 20090 gas mixer is specifically designed for ECMO or Heart-Lung Bypass applications. For export only. Not sold or offered for sale in domestic commerce. **Not CE marked.
Standard Parts:
- 0-10 LPM flowmeter
- 1000 ml flowmeter
- 100-1400 ml CO2 flowmeter
- Water Trap Assembly
- 14ft air hose/14ft oxygen hose
- For export only. Not sold or offered for sale
in domestic commerce. **Not CE marked.
*NOTE: Mixers will maintain the delivered FIO2 within + 1 percentage point of the selected value even with fluctuations in supply pressures. An additional 2% variance may result from the readability of the set point and scale error.
