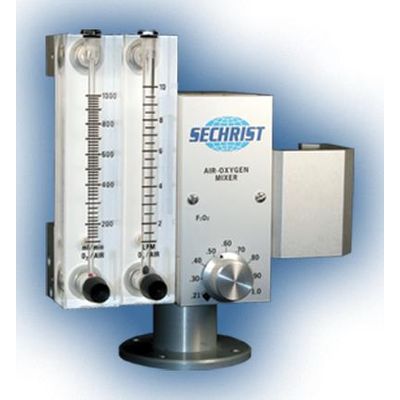

Sechrist - Model 3500CP-G Low Flow -Air/Oxygen Gas Mixers

SHARE

Sechrist Air / Oxygen gas mixers Model 3500 CP-G provides for precise mixing of air and oxygen for many clinical applications. The Model 3500 CP-G gas mixer is specifically designed for ECMO or Heart-Lung Bypass applications.

Most popular related searches
gas mixer
air blender
flow meter
water flow metering
water flow meter
air mixing
air modeling

Specifically designed for ECMO or Heart-Lung Bypass Applications

  • Accuracy*: +/- 3%
  • Maximum Flow: 40 LPM
  • Bleed Flow: 2.5 – 4.5 LPM @ 8 LPM
  • FIO2 Range: .21 +.01 to 1.0
  • Gas Supply Range: 50 psig +/- 20 psig

Standard Parts:

  • 0-10 LPM flowmeter
  • 1000 ml flowmeter
  • water trap assembly
  • Optional Parts:
  • 14 ft. air hose     (not CE marked)
  • 14 ft. oxygen hose    (not CE marked)

*NOTE: Mixers will maintain the delivered FIO2 within + 1 percentage point of the selected value even with fluctuations in supply pressures. An additional 2% variance may result from the readability of the set point and scale error.
