SECK - Model Split Type -Remote Reading Water Meter

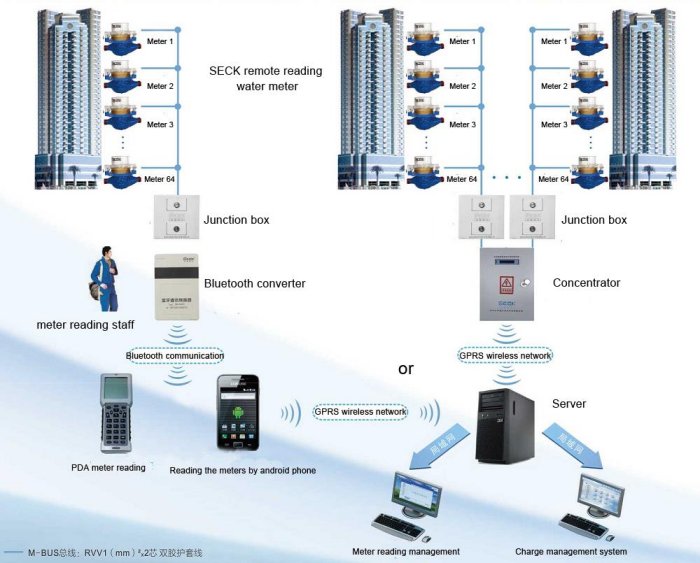

The system is consist of Split type remote reading water meter, unit collection box, concentrator, meter-reading software.

Split type remote reading water meter is equipped with a thick film resistance transducer. Different resistance values correspond to different character wheel position. The resistance value of mechanical meter can be converted into meter readings at any time.This water meter can work without power.

Unit collection box is bus connection and meter reading interface of split type direct reading water meter in buildings units.

Acquisition machine can upload data in the real-time or stationary time and realize stepped monthly water collection and storage.

Meter-reading software can receive,analyse and process data,then export the data to operating charge system, complete meter reading and charge.

1. No power supplied for the whole system except for the moment of reading meters, so that the data collection is in non-volatile mode.
2. The wet water meters adopt our patented sealing technology which encapsulated the sensor and the character wheels in a transparent case to make sure the clarity, stability and reliability of the wheels, as well as to avoid the bad influence of water contamination.
3. The Structure of Split type :This type water meter adopts modular split structure.It greatly reduces the maintenance cost of products and realizes the possibility of a product multi-cycle using;Base meter is wet type water meter in order to ensure the accuracy of the basic measurement in practical use.
4. Combined with a PC system, to establish a remote automatic meter reading system, really realize the automatic meter reading
5. No need to initialize the meter readings when installing new meters or replacing with new ones.
6. Accurate data acquisition, whether in short or open circuit, is consistent with meter readings when the faulty wiring has been repaired.
7. Refrain from the error when collecting data, and avoid the problems of sending signals by mistake due to rounding of the character wheels.
8. Free from the influence of voltage, illuminant, magnetic field, water pressure, air pressure, etc.

1. Split type structure,keep wet type semi liquid seal mechanical watch excellent measurement performance
2. Split type structure,give you the right to choose the base water meter
3. Split type structure,reduce the cost of replacing the water meter for periodic checks
4. Split type structure,easy for daily maintenance
