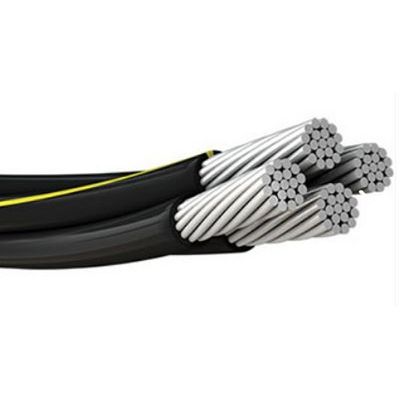

Qingzhou - Secondary Aluminum URD Cable
Application; The wire is rated at 600V for underground secondary distribution not exceeding 90°C. It may be directly buried in earth or installed in duct in both wet or dry locations. Configuration; Black phase insulated conductors cabled with neutral. Neutral will be marked with yellow striping or yellow jacket.
Most popular related searches
Votage: 600V
Conductors: Class B compressed concentric lay stranded 1350 aluminum alloy per ASTM B231 or AA-8000 aluminum alloy per ASTM B800 & B801.
Insulation: Phase conductors in black thermoset cross-linked polyethylene (XLPE). Neutral conductor in black thermoset cross-linked polyethylene (XLPE) identified by yellow striping or full yellow jacket.
Construction
- Conductors: Class B compressed concentric lay stranded 1350 aluminum alloy per ASTM B231 or AA-8000 aluminum alloy per ASTM B800 & B801.
- Insulation: Phase conductors in black thermoset cross-linked polyethylene (XLPE). Neutral conductor in black thermoset cross-linked polyethylene (XLPE) identified by yellow striping or full yellow jacket.
Features
- Individual cables are UL Listed as USE-2
- RUS accepted
- Temperature rating of 90°C dry, wet, and direct burial
- Heat, ozone, oil, and chemical resistant
- Tear and abrasion resistant
Standards
- ICEA S-105-692: 600V Single layer thermoset insulated utility underground distribution cable
- UL854: Service Entrance Cables
- RUS accepted
