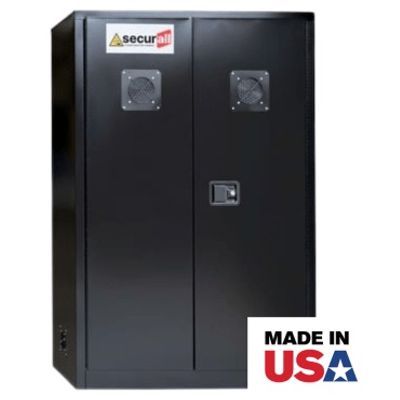

Securall - Model SA-LI145 -Securall Lithium-Ion Battery Charging Cabinet - 4 Shelf - 2 Door - Black
Protect your facility and your team with Securall’s purpose-built Battery Charging Cabinets —engineered for the safe storage and charging of lithium-ion, lead-acid, and other rechargeable batteries. Securall understands the critical risks associated with modern energy storage. Our battery charging cabinets are more than enclosures—they are risk mitigation tools, compliance enablers, and asset protectors. With optional customization available, we’re ready to meet even the most demanding charging environments. Whether you`re powering material handling equipment, tools, or backup systems, our cabinets deliver the safety, performance, and compliance you need.
- SKU: Cabinets : SA-LI145
- MPN: LI145
- MFG.: Securall
- Door Style: Manual Close
- Cabinet Category: Battery Charging
Battery charging carries inherent risks. Securall cabinets are built to minimize fire hazards, contain thermal events, and meet or exceed OSHA, NFPA, and UL safety standards.
Our cabinets are trusted across industries including:
- Warehousing & logistics
- Manufacturing & industrial operations
- Healthcare & laboratories
- Construction & job sites
- Telecom & IT infrastructure
Securall Battery Charging Cabinets are engineered to meet the highest standards for safety, compliance, and durability. Designed for facilities handling rechargeable batteries—such as lithium-ion, nickel-cadmium, and lead-acid units—our cabinets provide a centralized solution for both secure storage and safe charging of battery systems across industrial and commercial applications.
Every Securall cabinet is crafted to exceed industry benchmarks. Our battery charging cabinets are no exception—they incorporate features that directly address the hazards of battery storage and the demands of modern charging operations.
INTEGRATED VENTILATION SYSTEMS
Designed with built-in exhaust vents and mechanical fan systems to safely disperse heat and gases generated during battery charging cycles.
ELECTRICAL READINESS
Cabinets come pre-configured with electrical outlets, internal power strips, or hardwired connections to support multi-battery charging.
TEMPERATURE MANAGEMENT
Active & passive thermal dissipation ensure stable, safe charging even in high-demand environments.
SECURE, LABELED ACCESS
Lockable doors keep contents protected from unauthorized access, while clear hazard signage and labeling keep your team informed and compliant.
18 GAUGE DOUBLE WALL CONSTRUCTION & SEAMED JOINTS
Securall Safety Cabinets have Structurally Reinforced 18-Gauge Double Wall All Welded Construction throughout.
DOUBLE WALL CONSTRUCTION WITH 1 ½” AIR SPACE
Securall cabinets have Double Wall Construction with 1 ½" Air Space throughout the cabinet design.
NON-SPARKING , 3-POINT, SELF-LATCHING DOORS
Each Securall cabinet is outfitted with FM required Non-Sparking, 3-Point, Self-Latching door(s) for safe and complete closure every time.
STATIC GROUNDING CONNECTION
All Securall cabinets come ready with an FM defined static ground connection, comprised of a NFPA compliant 5/16 - 18 x ½” Zinc Plated Grounding Bolt.
ADJUSTABLE LEVELING LEGS
Securall cabinets are equipped with four adjustable Zinc Plated Leveling Legs for placement on uneven surface areas.
FLUSH MOUNTED LOCKING HANDLE
All Securall safety cabinets come standard with a Flush Mounted Locking Handle for smooth finger-tip operation.
FULL LENGTH, HEAVY-DUTY PIANO HINGES
Securall double-wall doors are secured to unit on full length, Heavy-Duty Piano Hinges for maximum security and limited vapor release.
Fan - UL-certified fan with dual-ball bearings and 67,000 hour lifespan.
- Fan Dimensions: 3.2x3.2x1 in.
- Voltage: 115V
- Speed: 3200 rpm
- Airflow: 22 CFM
- Noise: 32dBA
- Power: 11W
Power Strip
- Master on/off switch with 9 outlets.
- 15 amp circuit breaker.
- Safety covers protect unused outlets.
- Gauge 14/3
Power Inlet
- Voltage 125V
- Amperage 15 A
- Plug Configuration 5-15
- NEMA Configuration: NEMA 5
- Connection Type: Straight Blade
Securall Lithium Battery Storage Cabinet LI145 Specifications:
- Material: 18 Ga. CR Galvannealed Steel
- Number of Doors: 2
- Door Type: Manual
- No. of Shelves: 4
- Adjustable Shelves: Yes
- Dimensions (Exterior): 65H x 43W x 18D
- Dimensions (Exterior w/ power inlet: 65-1/8H x 46W x 18-5/16D
- Dimensions (Interior):59-1/2H x 39-1/2W x 14-1/2D
