Iss Spotter - Model Tethered -Security Drone for Temporary Surveillance
To ensure the security of assets and, above all, the public during one-off events or situations, ISS SPOTTER® Tethered drone is an essential asset that integrates into the existing or emergency security system. Comprehensive round-the-clock monitoring, incident anticipation, threat prevention, flow management of persons and traffic…, it provides a complementary, all-round view to assist security officers in their mission. Very practical to transport and rapid to set up using its own video case, it can be deployed anywhere on the move to assist in crisis management situations. The real benefit being that you are ahead of events as they unfold. ISS SPOTTER® Tethered provides a new and complementary vision for informed decision making in complete security.
Augmented vision
Real-time global day/night and panoramic vision coupled with a high-powered zoom (x23 in optical and x200 in digital).
Continuous monitoring
A robust solution linked to a wired power system for uninterrupted hazard detection.
Remote control
Simplified remote management of flight parameters (take-off, landing, flight height) and video streaming compatible with your supervisor or from an internet connection.
Mobility
A transportable solution that can be quickly deployed on site. All video streams can be consulted on a computer or mobile phone wherever you are.

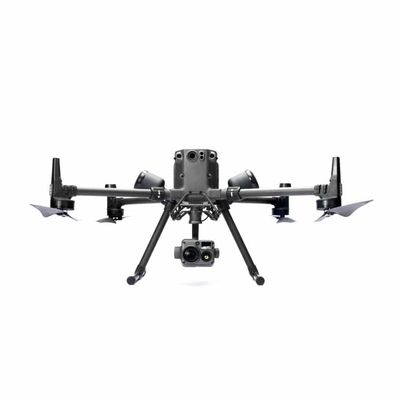

Connected by a cable that ensures its continuous power supply, ISS SPOTTER® Tethered drone has a 3-axis gimbal stabilizer on which the camera is fixed.
Connected to the drone, this wired station provides permanent power supply to the drone.
Provision of a video stream captured from the UAV (RTSP type stream) in hovering flight at a height of 50 to 70 metres:
- Available on the monitoring station
- Possibility of sending the video stream over a local network.
Complete aerial drone system
- Drone with stabilized gimbal equipped with optical camera (X23) and thermal camera (X8)
- Wired system for permanent power supply to the drone
- Monitoring station
- Autonomous electrical generator if no access to 220V / 4kw supply.
- Certified drone pilot, experienced and with specific training in the use of the ISS SPOTTER® Tethered
- Technician (as required).
ISS SPOTTER® Tethered allows you to transmit the video streams to your security system in a fully encrypted and secure manner.
Equipped with a powerful X23 optical and X200 digital zoom, the RGB (visible spectrum) camera sensor has a 20 mega pixel resolution with a rate of 30 frames per second for high resolution aerial photography. At night, the infrared sensor takes over for continuous filming.
Remote automated drone piloting
ISS SPOTTER® Tethered drone allows you to select pre-set flight heights up to 70m with local control or remote control by the operator from the security centre. Degraded modes are managed automatically.
The Human Machine Interface (HMI)
Easy to use, the proprietary software interface of ISS SPOTTER® Tethered offers you full management of flight parameters (take-off, landing, flight height…) with remote access to general monitoring features via a web browser.
Manual control of aerial imagery
The cameras of the tethered UAV are manually controlled via a remote joystick (3-axis direction/zoom) by providing a dual stream (EO/IR).
ISS SPOTTER® Tethered also has a photo and video recording function..
Portable video case
Very robust, the video case with its two integrated screens and its joystick allows you to supervise the video return and the piloting of the drone wherever you are.
