Yosemitech - Model Y560-A -Self-Cleaning Ammonium ISE Sensor

Yosemitech NH4-N ISE sensor measures the concentration of dissolved ammonium as nitrogen (NH4-N) in water. The sensor uses pH, Ammonium Ion electrodes, and an optional potassium ion electrode to determine the NH4+-N concentration. It is designed for use in all kind of natural water, such as lakes, streams, rivers, as well as wastewater plants. The online sensor measures ammonium electron concentration without using any chemicals. With automatic wiper to clean up the electrode sensing surface and easy electrode replacement, Y560-A provides a quick, simple, and economical solution for ammonium concentration measurement.

Most popular related searches

ammonium sensor

wastewater plant

underwater temperature

RS-485; MODBUS protocol compatible
No reagent, no pollutants, more economic and environmentally friendly
Automatic compensation for NH4+, pH and temperature in water
With a self-cleaning wiper, prevent biofouling to guarantee accurate measurement.

Name: Ammonium ISE Sensor

Model: Y560-A
NH4_N Range: 0-100mg/L （0-1000mg/Loptional）
NH4_N Accuracy: ±10% or ±0.5mg/L
NH4_N Resolution: 0.01 mg/L
pH Range: 4-10
pH Accuracy: ±0.1pH
pH Resolution: 0.01
Size: Φ64mm*271mm（with protective cover）
Housing IP Rating: IP68
Deepest Depth: 10m underwater
Temperature Range: 0 ~ 50℃
Sensor Interface: Supports RS-485, MODBUS protocol
Construction: NPT3/4 thread，submersible mounting
Power: DC 9~24V，current<100mA（when not cleaning）
Cable Length: 10m standard, Custom length available
Calibration: one-point or two-points calibration
Sensor housing material: POM

Yosemitech - Model Y560-A -Self-Cleaning Ammonium ISE Sensor

Features

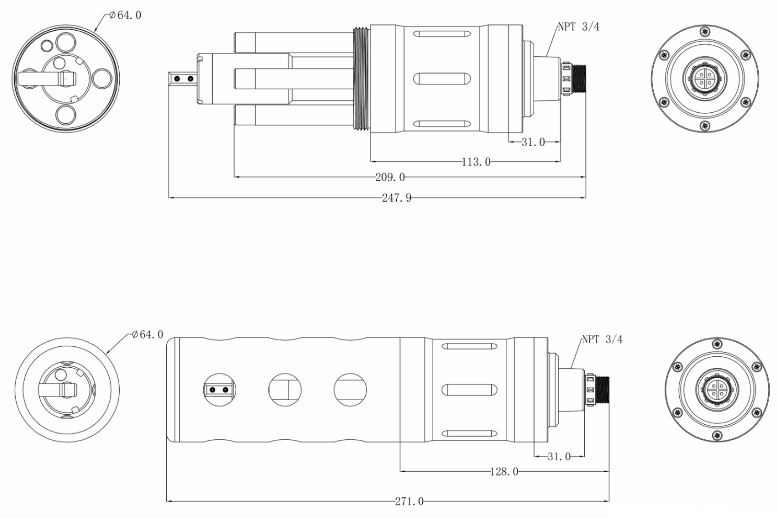

Product Size

Product Parameters
