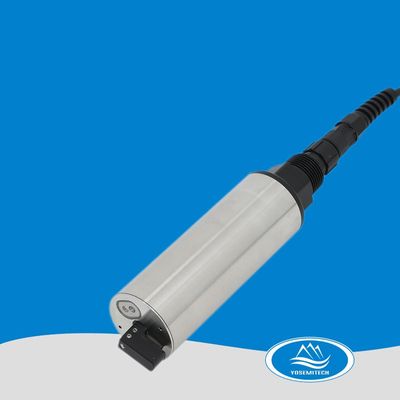

Yosemitech - Model Y513-A -Self-Cleaning Blue-Gree Algae Sensor
Y513-A blue-gree algae sensor is based measurement principle of ultraviolet fluorescence method. Compared with other methods, the fluorescence method is proven to be more efficient, fast and repeatable. Y513-A has an integrated cleaning brush, which can automatic clean up air bubbles, debris, and biofilm, therefore reduce the interference of contamination on measurement data, make the maintenance period longer, and maintain excellent stability for long-term online use. It can be widely used in rivers, lakes, ponds, marine surveys, aquaculture, drinking water sources and other fields of algae and phytoplankton monitoring, investigation and research.
Most popular related searches
algae sensor
drinking water source
water source
phytoplankton monitoring
marine survey
water quality
drinking water
real-time water quality
real-time water
contamination monitoring
- RS485 output, standard Modbus protocol compatible
- With automatic cleaning wiper, effectively eliminate the bubbles and eliminate optical surface biofouling
- The fluorescence method is proven to be more efficient, fast and repeatable
- On-line continuous monitoring, real-time control of water quality dynamics.
Name: Self-cleaningBGASensor
- Model: Y513-A
- Principle: fluorescence method
- Range: 0-200000 cells/mL
- Detection Limit: 300 cells/mL
- Resolution: 1 cells/mL
- Linearity: R²＞0.999±1ppt
- Housing IP Rating: IP68
- Maximum pressure: 3bar
- Temperature Range: 0 ~ 50℃
- Output: Support RS-485， Modbus protocol
- Power Requirements: DC 5~12V，current＜100mA

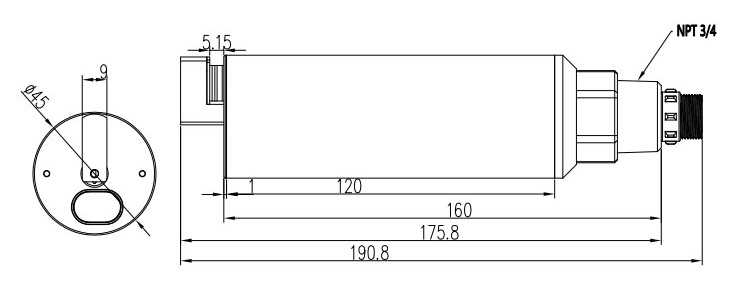

- Sensor Size: Φ45mm*190.8mm
- Self-cleaning wiper: self-cleaning brush
- Installation: Submersible installation
- Probe cable length: 10m (default), customizable
- Housing material: 316L/ Ti
- Calibration: Two-points calibration
