Orival - Model ORC Series -Self-Cleaning Coarse Strainer
FromOrival Inc.
Self-cleaning coarse strainer for applications where a fine level of filtration is not required. Can be installed in parallel to handle larger flow rates. Perforated stainless steel screens are available with 3000, 5000 or 8000 micron openings.
Most popular related searches
self-cleaning strainer
industrial water filter
water filter cleaning
industrial water
strainer
water filter
filter cleaning
water filter industry
self-cleaning filter
water industry
- Type Automatic, self-cleaning
- Max Pressure 150 PSI
- Max Temp 150 °F
- Power Line pressure
- Construction Stainless steel or carbon steel

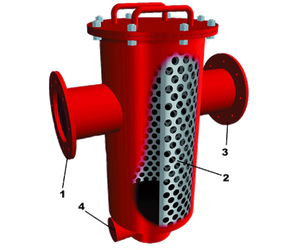

Dirty water enters the inlet 1 and travels to the concave surface of the perforated screen 2. The water then passes through the screen and exits the outlet 3. Unwanted particles accumulate on the surface of the screen.
On activation of the rinse cycle, the rinse valve 4 is opened to drain. A portion of the water flows back through the screen, lifting the solids off. A portion of the flow also travels across the screen surface, carrying the solids to the drain.
