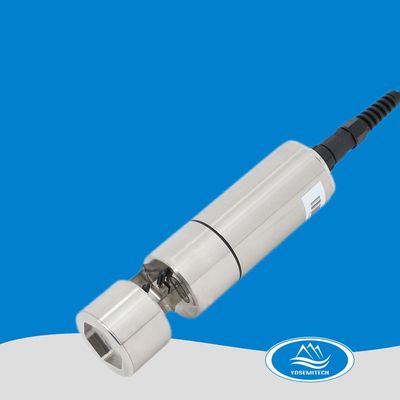

YosemitechModel Y531-A -Self-Cleaning Color Sensor

SHARE

Yosemite`s Y531-A self-cleaning color sensor is designed in accordance with ISO standard. With rugged design and automatic water turbidity compensation, it monitors apparent color in applications where a precise indication of the color of the water is required. The self-cleaning color sensor is ideal for cost effective monitoring at the intake stage of drinking water processing,  surface water,  municipal and industrial wastewater processing.

Most popular related searches
  • Small size, easy installation and maintenance, with better repeatability and stability
  • Self-cleaning brush to prevent the adhesion of impurities and microorganisms
  • Maintenance-free, long service life, low cost of use.
  • Name: Color Sensor
  • Model: Y531-A
  • Range: 0-500 Hazen
  • Linearity: R²>0.999
  • Temperature range: 0 ~ 50℃
  • Sensor Interface: Support RS-485,Modbus protocols
  • Power Requirements: DC 9~24V,1A
  • Construction: Immersion installation

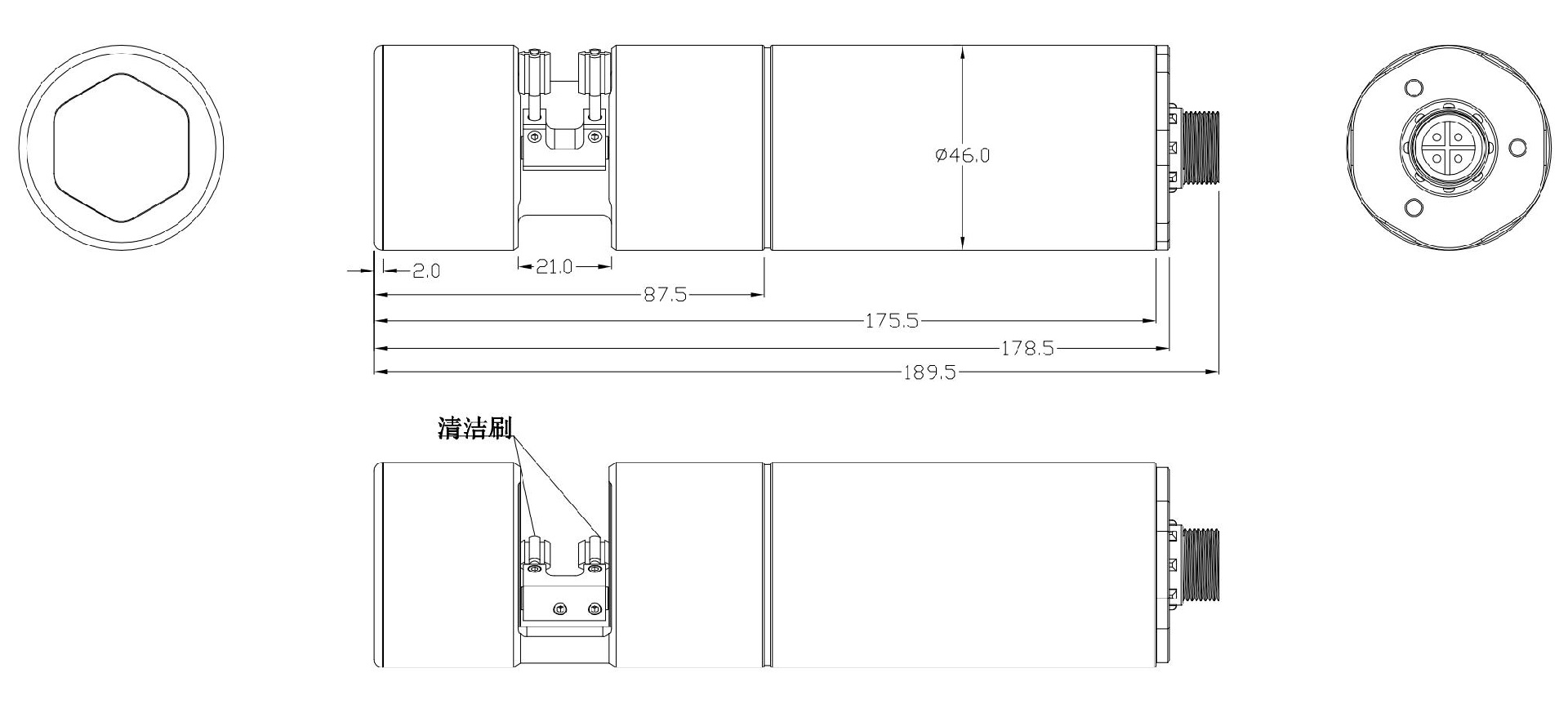

  • Sensor Size: Φ46mm*189.5mm
  • Maximum pressure: 3bar
  • Housing IP Rating: IP68
  • Probe cable length: 10m (default), customizable
  • Calibrate: one-point or two-points calibration
  • Sensor material: Ti
  • The above technical specifications are tested under standard solutions in laboratory environment. and subject to change without notice.
