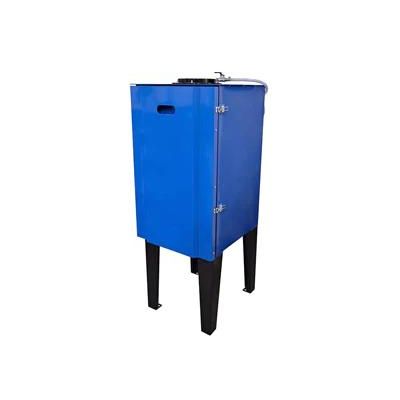

Lev-Co - Model CF-ECO - 1400 CFM - 03-061 -Self-Cleaning Filtration Unit
CF-ECO - A Self-Cleaning filtration unit that is suitable for Welding/Soldering fumes and other lighter dust. With a max airflow rate of 1400 CFM.
Portable work-station filtration unit that collects particles/gases at the source to protect the user. Made with a built-in fan with an aluminum impeller. With up to 99.9% filter efficiency the CF-ECO. Cartridge Filters will clean the premises of welding fumes and light grinding dust. The cleaned air is recirculated into the premises, with zero heat loss.
Available with:
- Fan / Motor Upgrades or Options
- VFD Option
- 12/14/16 ga. welded steel, powder coated cabinet
Blower packages:
- 1phase/1.5 HP/115V/60Hz
- 3phases/1.5 HP/208-230/460V/60Hz
- 3phases/1.5 HP/575V/60Hz
- Nominal airflow of 1400CFM
The features of this product include:
- Complete, self-contained unit with a Jet-Pulse, self-cleaning filter system
- Can be configured to suit many applications such as light dust, welding fumes, gases, vapours, and fine particulates
- Optional HEPA and adsorption filters available
- Spark proof fan assemblies and explosion-proof motors
- The unit comes with the option of the FLEXI-I or FLEXI-II extraction arm which supports either a 6.5" diameter hose or 8" diameter hose respectively.
- Superior 5 to 10Ft long FLEXI Extraction Arm c/w an advanced design `Parallelogram` counter-balancing system
Top 5 contaminants/processes/applications:
- Gases
- VOCs
- Welding Fumes
- Silica Dust
- Metal Air Contaminants
Don`t see your contaminants? Give us a call! 1-888-862-5356 or Click our instant chatbox.
IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.
DC-SCF-115
Self-Cleaning CF-ECO c/w 1.5 HP 115-230/1/60 motor
AS PER CANADIAN LAW; this unit is approved by CSA field evaluation prior to shipping in order to meet Canadian Laws and for your additional safety
DC-CF-115
CF-ECO c/w 1HP 115/1/60 motor
AS PER CANADIAN LAW; this unit is approved by CSA field evaluation prior to shipping in order to meet Canadian Laws and for your additional safety
DC-CF-2
CF-ECO c/w 1.5 HP 208-230/460/3/60 motor
AS PER CANADIAN LAW; this unit is approved by CSA field evaluation prior to shipping in order to meet Canadian Laws and for your additional safety
DC-CF-3
CF-ECO c/w 1.5 HP 575/3/60 motor
AS PER CANADIAN LAW; this unit is approved by CSA field evaluation prior to shipping in order to meet Canadian Laws and for your additional safety
