Self-Cleaning Fluidfilter With Backwash

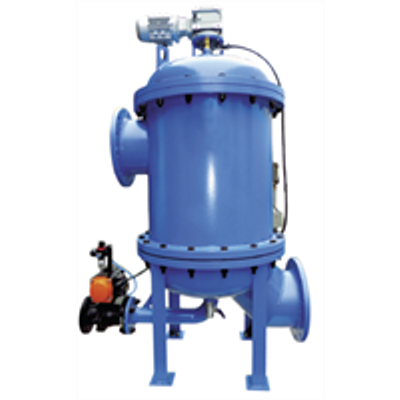

| The filter consists of a main body, motor and gear, the inlet and outlet pipes with flanged connections, filter elements, drain valve with pneumatic actuator, and control systems. These components provide a fully automated backwash filtration processes. Filter unique internal structure and self-cleaning make it easy to remove impurities from filter elements and provide high quality filtration without flow reduction as well as ensures a long service life. Slotted filter element is made of high-quality stainless steel, corrosion and wear resistant and has a high filtration efficiency. Filtration capacity can be from 50 to 3000 microns. With the search function and the emergency operation filter carries out automatic backwash and works efficiently without manual control even at unstable quality and water pressure. Filter is a fast-speed device that automatically maintains the preset pressure differential and determines backwash cycle duration depending on the filtration efficiency. During the cycle of each filter element backwash is started, providing its full cleaning in succession, while others continue filtration. Backwash is a short-term process and consumes a small amount of clear liquid. Filters are compact, take up little space, can be easily installed and dismantled. |
The benefit of our filters
- Full automation of the fluid filtration process
- Improved safety by eliminating operator`s contact with potentially hazardous substances
- Cost saving - the system reduces your costs significantly
- LCD display with simple menu for quick and easy setup and control
- Reduces labor costs as long as non-automated control is not needed
- Filtration capacity up to 25-3000 micron, high cleaning efficiency.
- Control system parameters setting. Easy to use.
- Fluid filtration process is not interrupted during filter element automatic backwash.
- Easy to install, maintain and repair.
- Low water consumption per backwash - no more than 0.5% of the total flow
The economic benefits of filter installation
- Mechanical contaminations in process liquids lead to poor performance and process parameters and accelerates equipment as well as pipes, valves wear, and often leads to premature failure.
- Installing the filter with backwash practically eliminates these negative aspects and significantly prolongs the components service life and increases servicing periods.
- Thus, using a filter you can reduce the costs related to the technology violations, as well as the costs for the purchase of new materials, operation and maintenance.
Zero series filters
ZERO series filters offer a wide range of automatic self-cleaning filters. For easy installation ZERO series filter flanges have direct location and can be attached to any straight pipeline.
This series self-cleaning filters are characterized by a two-stage purification process. Each filter consists of coarse and fine screens. Coarse screen filters out large particles and fine screen purifies water to the desired level.
These automatic self-cleaning filters are widely used. Filter characteristics:
flow rate: 3.5 - 4500m ³/hour discharge duration: 6 - 12 seconds drain valve size: DN 25-50 mm filter cartridge: 5 - 4,000 mcm Temperature: 98,9 ° C washing volume: 8-180 liters per backwash cycle operating pressure: 0.2-1.0 MPa material: stainless steel, carbon steel
Strainers
Strainers have a linear layout version and configuration. Flange layout design allows installing them on the existing pipeline. Strainers are designed for the water purification of the large particles and are mostly used in combination with other filters for the fine screen protection.
Filter characteristics flow rate: 3.5 - 4500m ³ / hour discharge duration : 6 - 12 seconds drain valve size: DN 25-50 mm filter cartridge: 5 - 4,000 mcm temperature: 100 ° C washing volume: 8 - 180 liters per cycle backwash operating pressure: 0.2 - 1.0 MPa material: stainless steel, carbon steel

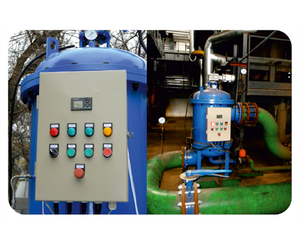

Packaged unit installation is a ready-to-use filtering system mounted on the platform. This installation is a combination of any self-cleaning filter model with a pump, manifold pipe and controller. Packaged unit installation provides mobility, simplicity and versatility for the industrial use, irrigation systems or public utilities.
