Sollau - Model MSSJ-AC Tarantula -Self-Cleaning Magnetic Grate Separators

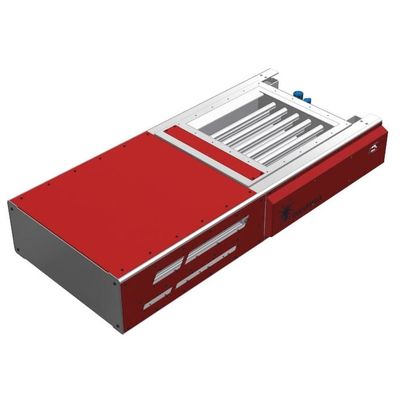

MSSJ-AC – TARANTULA separator for continuous operation (the hole for the material input is positioned at the edge of the separator). At the throughs via the pipe grates the magnetic metal impurities are caught thanks to the strong permanent magnets on the surface of the stainless cover pipes. Subsequently both upper magnetic grids are moved above the waste hopper in the preconfigured intervals by air-operated drive and guiding roller bars and after that the magnetic cores consisting of stainless grids are drawn up to the extreme position (so above dust-exhaust provided the magnetic separator is equipped with optional appliance). After extrusion of magnetic cores the magnetic particles caught fall off spontaneously out of the surface of the pipes into the waste hopper.
- Automatic cleaning without a need of interrupting the flow of material
- Four-stage separation
- Extremely large intercepting magnetic area
- Small dimensions
- Inspection opening
- Very attractive ratio ´´price/performance“
- Low repair and service costs
- Magnetic induction of up to 13500 G
- ATEX (zone 22 outside of the equipment and zone 21 inside of the equipment)
- Five-year warranty for the magnetic core
Provided the separator is equipped with a dust exhausting device (these are optional accessories) even the finest dust particles of the mass being cleaned are removed out of the magnetic cores pulled out by exhausting. The clean material (already free of ferro-magnetic impurities) falls to the hopper of the material being cleaned spontaneously after passing the magnetic grids and it is led away to be processed further.
After finishing the cleaning process the magnetic cores are intromitted back to the covering pipes and the cleaning process is repeated without a break in the preconfigured intervals (either both upper or both lower storeys of the separator are cleaned alternately). Automatic cleaning combined with smaller dimensions predetermine this device to be used in the production lines with a lack of area to carry out the required manual cleaning of the MSS-MC standard magnetic grate-shaped separator with manual cleaning or area to install the MSSO-AC Black Widow separator with automatic continual cleaning.
The magnetic sieve (consisting of four grates) ensures the high efficiency of separation and at the same time the cleaning intervals are prolonged due to it (because the large intercepting area sustains a big quantity of ferromagnetic particles). And even the separator contains four magnetic grates, an extremely low installation height has been achieved by a sophisticated structural design. The status of the separator can be checked continuously by the inspection chamber.
- Automatic cleaning without a need of interrupting the flow of material
- Four-stage separation
- Extremely large intercepting magnetic area
- Small dimensions
- Inspection opening
- Very attractive ratio ´´price/performance“
- Low repair and service costs
- Magnetic induction of up to 13500 G
- ATEX (zone 22 outside of the equipment and zone 21 inside of the equipment)
- Five-year warranty for the magnetic core
- Continuous cleaning (= there is no need to interrupt the material flow during the cleaning)
- High stiffness of the sieve (4 storeys of magnetic pipes = more effective separation)
- Extremally large total magnetic catch area
- Reduced length of separator (= lower build-up area)
- Possibility to replace the individual magnetic bars (= lower repair and service costs)
- Inspection chamber to check the status of magnetic bars
- Attractive ratio of the parametres ´´price/performance“
