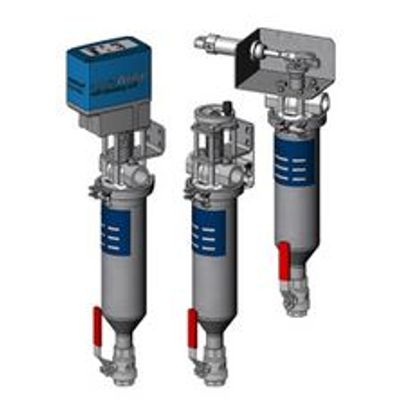

acuraLine - Model KSF-1FU(C) -Self-Cleaning Wedge Wire Filters

The basis of this development is the patented and proven cartridge filter housing of the 1FU series (screwed closure) and the 1FUC series (with quick closure). When converting from the cartridge filter to the automatic filter, the cast part of the filter head was modified to create a connection between the drive and the filter element. Also in terms of dead spaces and flow behavior, acuraWedge self-cleaning filters set new standards. The free choice of the closure enables use in many areas of industry, since all common sealing materials can be selected, e.g. NBR; EPDM; FPM; FEP-O-SEAL, core FPM; FFKM; GYLON blue. The drive shaft is not sealed with a stuffing box packing, but with a low-maintenance 3D driveshaft sealing. Annoying readjustments are therefore no longer necessary to guarantee optimal tightness.
