High Tide Technologies - Model HTT-3100 -Self-Contained Communications and Control Device

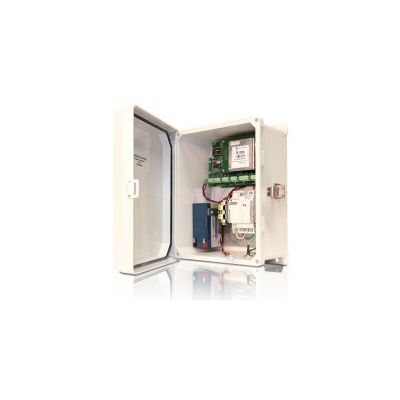

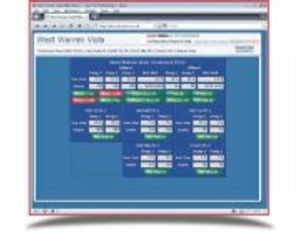

The HTT-3100 is a self-contained communications and control device that receives input data from analog or digital sensors and transmits that data through IRIDIUM network or available GSM/CDMA networks directly to the High Tide Technologies server.The available digital outputs allow the user to automatically control the plant infrastructure or over-ride local control in the event of an emergency. The transmitted information is checked for alarms and stored in a historical database. Historical data can be viewed through the Internet using any standard browser.
Large water/sewer pump stations and package treatment plants will use the HTT-3100 containing an embedded PLC to expand the normal input structure. Optionally, analog outputs can be used to control variable frequency drives or chemical feed pumps. Digital and analog inputs can be enhanced with optional add-on cards as well.
- Large Water/Sewer Pump Station
- Primary Lift Station monitoring
- Battery back-up with power fail alarms
- Built in satellite or cellular modem
- 24v loop power for 2-wire sensors
- 4 Analog inputs (4-20ma,0-5v)
- 2 + Analog inputs(4-20ma)
- 2 Analog outputs (4-20)
- 28 Digital inputs
- 8 Relay outputs
