PTRModel PT-120 -Self Contained Compactors

SHARE

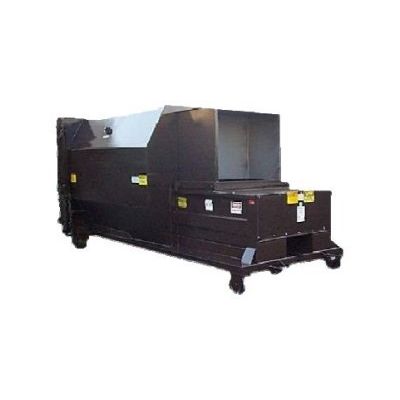

The PT-120 Compactor has been engineered and manufactured to provide many years of reliable service. The heavy-duty structural steel components are welded by AWS certified technicians and water tested to ensure leak proof containment under high compaction forces. This unit has total U.L. approval, standard 3 button controls, On/Off key switch, mushroom stop, auto reverse and a Sure-Tite door seal.

Most popular related searches
  • Charge Box Capacity :1 Cu Yd
  • Container Capacity : 12 Cu Yd
  • Clear Top Opening (L x W) : 31” x 50”
  • Electrical Motor 208/230/460v : 3 Phase
  • Horse Power : 5
  • Electrical Control Voltage : 120 VAC
  • Cycle Time : 45 sec
  • Total Normal Force : 39,611 lbs
  • Total Maximum Force : 52,287 lbs
  • Normal Ram Face Pressure : 39.8 psi
  • Maximum Ram Face Pressure : 52.6 psi
  • Hydraulic Pump Capacity : 6.5 gpm
  • Normal Pressure : 1750 psi
  • Maximum Pressure : 2400 psi
  • Hydraulic Cylinder (2) Bore : 4”
  • Hydraulic Cylinder Rod : 2.5”
