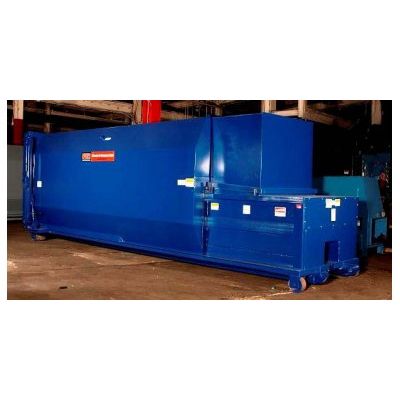

PTRModel PT-350 -Self Contained Compactors

SHARE

The PT-350 Compactor has been engineered and manufactured to provide many years of reliable service. The heavy-duty structural steel components are welded by AWS certified technicians and water tested to ensure leak proof containment under high compaction forces. This unit has total U.L. approval, standard 3 button controls, On/Off key switch, mushroom stop, auto reverse and a Sure-Tite door seal.

Most popular related searches
  • Charge Box Capacity : 2 Cu Yd
  • Container Capacity : 35 Cu Yd
  • Clear Top Opening (L x W) : 41” x 60”
  • Electrical Motor 208/230/460v : 3 Phase
  • Horse Power : 10
  • Electrical Control Voltage : 120 VAC
  • Cycle Time : 31 sec
  • Total Normal Force : 42,708 lbs
  • Total Maximum Force : 51,250 lbs
  • Normal Ram Face Pressure : 23.8 psi
  • Maximum Ram Face Pressure : 28.5 psi
  • Hydraulic Pump Capacity : 10.5 gpm
  • Normal Pressure : 2000 psi
  • Maximum Pressure : 2400 psi
  • Hydraulic Cylinder (2) Bore : 4”
  • Hydraulic Cylinder Rod : 2.5”
