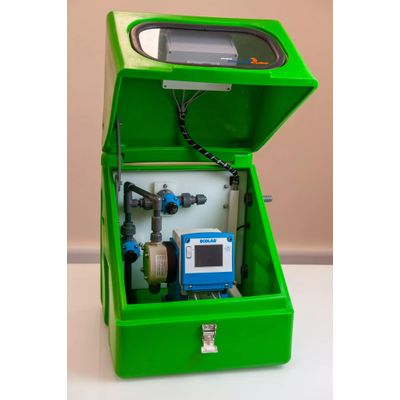

WES - Model DosingCube -Self Contained Dosing System

Once power is supplied switch unit on via the On/Off button at the upper right hand side of the display screen, then set the pump to the required mode and the pump to the discharge volume via the pump’s digital display (pump manual also provided). Site the DosingCube™ in an appropriate/safe location (brackets are supplied for use with an IBC). Place suction line into the chemical and run discharge line to the point of application. Use a dual contained pipe arrangement where possible. The DosingCube™ itself acts as a bund and includes a relief valve and float switch, however, a tank/IBC bund is also recommended.

Materials of construction for the DosingCube™ are suitable for most chemicals commonly used in water and waste water treatment. The operator should confirm that chemical compatibility is suitable. Chemicals to be used should be defined at point of order. Once correct installation is complete the DosingCube™ is ready for use and can be operated in the chosen mode, i.e. manual, automatic or flow proportional. For long suction runs the pump may need to be manually primed before the system is ready for automatic use. The lid of the DosingCube™ is lockable for safety of operation and to prevent tampering.

The DosingCube™ is readily available, simple to use, robust and suitable for many different dosing applications. The pump head Can be configured to dose almost any chemical or additive, typical applications are:

• Aluminium Chloride
• Ammonia 10%
• Calcium Hydroxide
• Calcium Hypochlorite
• Ferric Chloride
• Ferric Sulphate
• Hydrochloric Acid 37%
• Hydrogen Peroxide 30%
• Sulphuric Acid 70%
