Watertronics - Model Watermax 5000 -Self-Contained Pump Station for Landscape

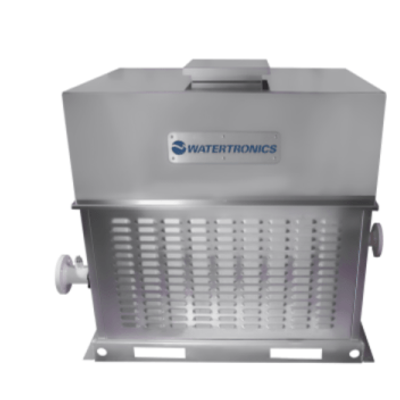

WaterMax 5000 is a pre-fabricated, self-contained pump station that can be customized to exactly meet your requirements through a broad range of options.
Most popular related searches
pump station
silent check valve
electromagnetic flow meter
digital temperature controller
isolation valve
epoxy coating
flow meter
remote monitoring
pump system
pressure regulator
- Application: Booster, Suction Lift, Flooded Intake
- Flow: Up to 400 GPM
- Pressure: Up to 100 PSI
- Horsepower: 3-25 HP
- Voltage: 208/1phase, 240/1phase, 208/3phase, 240/3 Phase, 480/3 Phase
- VFD pressure regulation with surge free station starting/stopping
- Starting Options:
- Pressure drop
- Flow based
- 24 VAC remote start relay

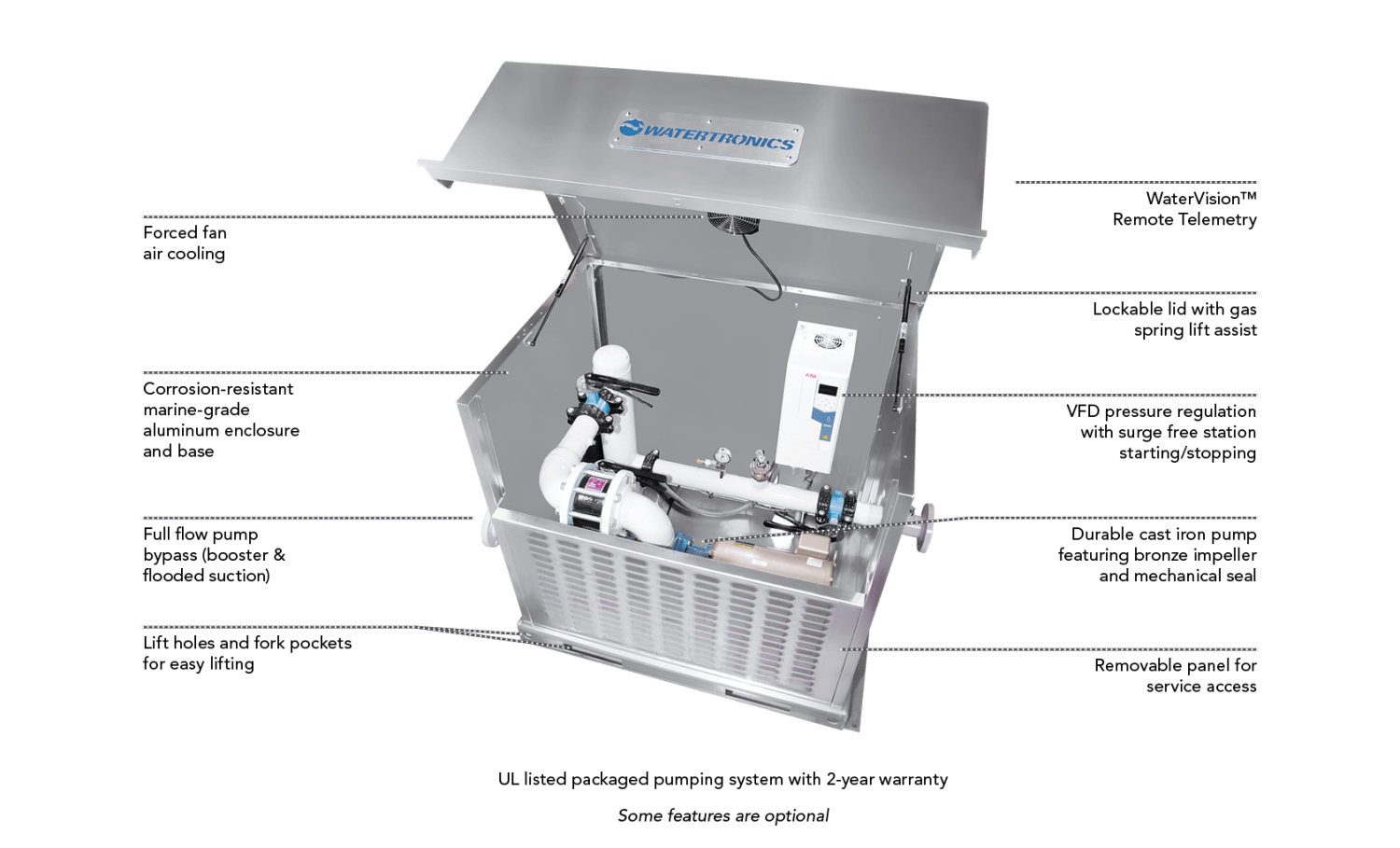

- Marine grade aluminum enclosure with lockable lid, forced fan air cooling, and gas spring assisted lid lift
- UL 508A listed dead front control panel with service rated disconnect and PLC
- Fork pockets and lift holes on base
- Alarms:
- Low pressure shutdown
- High pressure shutdown
- VFD fault shutdown
- High pump temperature shutdown
- Motor overload shutdown
- Phase loss (3 phase only) Automatic reset and time stamping of all alarms
- Features
- Alarm log history report
- Horizontal premium efficient inverter duty rated motor
- Durable cast iron pump featuring bronze impeller and mechanical seal
- Lightning surge protection
- Silent check valve per pump
- Station discharge isolation valve
- 3 step epoxy coat paint on all station piping
- Full flow pump bypass piping included on booster and flooded suction models
- Priming port and automatic priming assembly for suction lift models
- Stainless steel pressure transducer
- Flow sensor providing flowrate and totalized system flow
- Station inlet/discharge flanged termination
- Advanced Watertronics PLC based microprocessor controls with color touch screen
- WaterVision remote monitoring – ethernet or cellular versions
- 24 volt controller start (up to 2 additional)
- HDPE suction line assembly (floating or vertical) with foot valve
- Electromagnetic flow meter
- Suction & discharge drop pipes with multiple connection options
- Temperature controlled enclosure heater
- Vandal resistant red alarm light
- Internal sound dampening insulation
- Back flow preventer
- Programmable set-point lake level control
- Submersible turbine or vertical mulit-stage pumps
- In-line basket or wye strainer
- Automatic self-cleaning discharge filtration

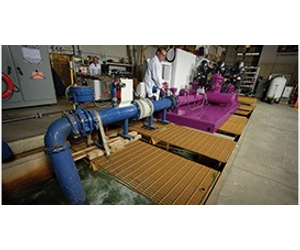

Prior to delivery, eachstation is tested to site specific conditions for full dynamic flow, operation and 7-point vibration performance in our 88,000 gallon factory test pit.

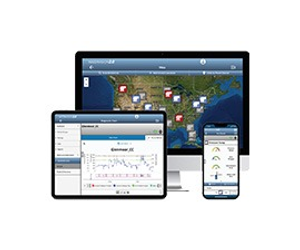

WaterVision 2.0 Remote Telemetry
Stay connected and in control. View, manage, diagnose and make adjustments remotely anytime.

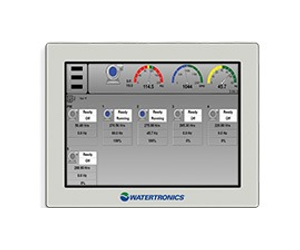

VirtualVision™
Easy-to-use VirtualVision™operator interfacefeatures full colortouchscreen displayfor monitoring alarms,changing pumpsequencing, recording/resetting water usageand more.
