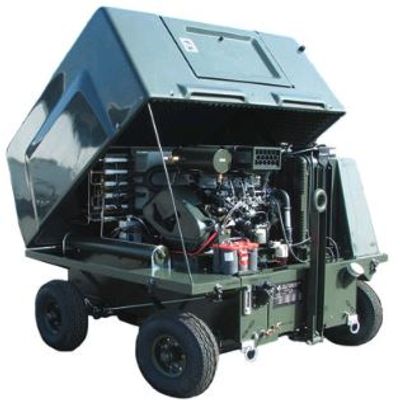

PCI - Model SGNSC -Self Generating Nitrogen Servicing Carts
The Self Generating Nitrogen Servicing Cart (SGNSC) completed extensive and rigorous testing to validate its suitability for military usage in all locations around the world under all possible environmental conditions. HP SGNSC is specifically designed to support the F-16 Fighting Falcon.
Most popular related searches
- 95.5% N2, 15 scfm, 4400 psig (SGNSC)
- 99.5% N2, 10 scfm, 4400 psig (HP SGNSC)
- Approximately 3000 lbs
- 80″ Long x 72″ Wide x 63″ Tall
- Totally eliminates any nitrogen resupply requirements
- Automated purity and pressure control
- Completely sealed system eliminates contamination
- N₂ Purity Part # HP: 791600-003 (NSN: 3655-01-572-1180)
- Part # LP: 791600-001 (NSN: 3655-01-463-3338)
- Pressure 15 scfm @ 4400 psi (SGNSC) | 10 scfm @ 4400 psi (HP SGNSC)
- WeightApproximately 3000 lbs
- Dimensions80″ Long x 72″ Wide x 63″ Tall
- Powered byDiesel fuel, JP-4, JP-5, JP-8, or Jet A
- On board storage 830 scf on board nitrogen storage at 4400 psi
