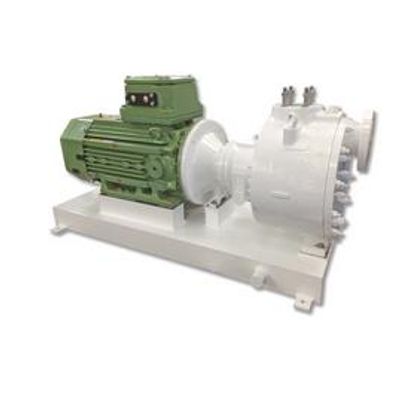

HMD Kontro - Model SPGS -Self Priming General Service Sealless Magnetic Drive Pumps
The SPGS pump from HMD Kontro is a self-priming sealless magnetic drive pump designed for reliable fluid transfer of liquids ranging from water to hazardous and toxic substances.
The sealless pumps which are guaranteed to be leak-free are particularly suitable for offloading liquids where total liquid containment is crucial including emptying sumps, road and rail tankers.
The SPGS product covers a hydraulic range that is split between two frame sizes, Frame 0 and Frame 1. Standard construction is 316 stainless steel with silicon carbide internal bearings. Other material options are also available such as Alloy 20 or Alloy C, with PTFE gaskets.
SPGS self-priming sealless magnetic drive pumps comply with all specifications required by the oil & gas, petroleum and heavy chemical industries and the pumps are typically used in toxic, aggressive, hot, crystallising and high-value processes.
- Self-priming capability ensures the safe transfer of liquid
- Increased efficiency liquid ends for lower running costs
- Many compatible spares with other GS range pumps
- Simple installation
- Easy to maintain onsite
Product Security – Magnetic drive sealless pumps are the safest and most robust means for liquid transfer. By eliminating the seal, the primary opportunities for leaks associated with traditional sealed pumps are completely removed.
Efficiency – By improving performance and reducing maintenance calls, sealless magnetic drive pumps can dramatically lower downtime and lost production. In sum, this equates to maximised efficiency that can be seen on your bottom line.
Reliability – Sealless magnetic drive pumps have proven their reliability in even the most severe climate conditions, from the frozen tundra of Siberia to the deserts of the Middle East and the humid climes of Louisiana’s refineries. In fact, there are HMD Kontro pumps that have been in operation for over 30 years and are still running today.
Safety – HMD Kontro sealless magnetic drive pumps are manufactured to conform to international design and safety standards, including ATEX, ISO, API and ANSI requirements. Plus, with no mechanical seals to leak hazardous chemicals, these pumps offer a clear choice for process industry professionals who regularly deal with volatile or high value materials.
Cost-effective – Sealless magnetic drive pumps require less monitoring and maintenance than traditional sealed designs, equating to substantial savings over the life of the pump.
Service – Global service centres keep HMD Kontro sealless magnetic drive pumps operating with peak performance. Standard pumps and parts are available from the factory and in the field.
SPGS 0
- Flows to 14 m³/hr (62 gpm)
- Heads to 37 m (121 ft )
- Pressure 10 bar / 145 psi
- Temperature Range -40 to 120°C (-40 to 250°F)
SPGS I
- Flows to 25 m³/hr (110 gpm)
- Heads to 52 m (170 ft)
- Pressure 10 bar / 145 psi
- Temperature Range -40 to 120°C (-40 to 250°F)
Chemical Processing
- Chlor-Alkali
- Pesticides
- Insecticides
- Herbicides
- Fertilizer
Hydrocarbon Processing
- Sour water
- Sulfuric acid
- Benzene
- Xylene
- Toluene
Upstream
- Produced water
- LACT
Aquatic and Marine
- Seawater
- Caustic
Battery Manufacturing
- Sulfuric acid
- Potassium hydroxide
Biofuels
- Bio-diesel
- Ethanol
Food and Beverage
- Fragrances
Mining
- Sodium cyanide
- Sulfuric acid
- Hydrochloric acid
Pharmaceutical
- Silicon oil (Heat transfer fluid)
Pulp and Paper
- Chlorine
- Sulfuric Acid
Semiconductor Manufacturing
- Hydrofluoric acid
- Sulfuric acid
Steel Finishing, Pickling, Etching and Plating
- Hydrochloric acid
Water and Wastewater Treatment
- Sodium hypochlorite
- Sodium hydroxide
- Sulfuric acid
- Ferric Chloride
